    Fully Automatic Screw Capping Machine Tracking With Cap Sorter Capping Head Moving System

    Ask Lasest Price
    Brand Name : NPACK
    Model Number : NP-TC
    Certification : CE
    Price : 26000USD to 52000USD
    Payment Terms : L/C, T/T
    Supply Ability : 10sets/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Fully Automatic Screw Capping Machine Tracking With Cap Sorter Capping Head Moving System

    Fully Automatic Tracking Capping Machine With Cap Sorter Capping Head Moving System

    NPACK NP-TC Automatic Tracking Capping Machine

    Automatic Tracking Capping Machine is a new advance technology capper for packaging industry, it matches with the automatic tracking filling machine for full packaging line working.Emotion controller, all the movement are driven by servo motor, it is almost reach the 100% smart equipment.

    The Npack Np-TC series automated tracking capping machine is a modification of the inline pick and place capping machine, specifically designed to address the low capacity issues associated with the latter. Its movement is governed by a Motion Controller, ensuring greater efficiency and accuracy compared to a PLC. The capping heads move in synchronization with the bottles during the capping process. The machine can be configured with one or two capping heads, offering a capacity ranging from 40 bottles per minute (b/m) to 80 b/m, irrespective of the bottle and cap sizes (based on 50ml to 5000ml bottles).

    This machine boasts the advantage of continuous bottle operation, ensuring that even when the bottles are nearly full after the filling process, liquid does not splash out during capping. It incorporates a highly efficient servo system, encompassing belt servo, horizontal moving servo, up and down moving servo, and servo capping head system. The servo motor facilitates automatic gripping and capping, ensuring precise movement and high-speed operation.


    Main Features

    1. The servo system + torque module controls the capping head, and the cap tightness is freely set.

    2. The whole machine is made of 304 stainless steel material

    3. The cap feeding system is adapt Cap elevator or viberatora according to what types of caps

    4. For different size of bottle and cap, only need adjust no need change parts excluding the capping head.

    5. No Liquid Shakes Out---Bottles no need to stop for capping,capping heads are moving with bottles

    6. Wide Application--- fast switching for various caps and bottles

    7. High success rate cap loading---pick & place capping

    8.Perfect capping without damage the bottle and cap

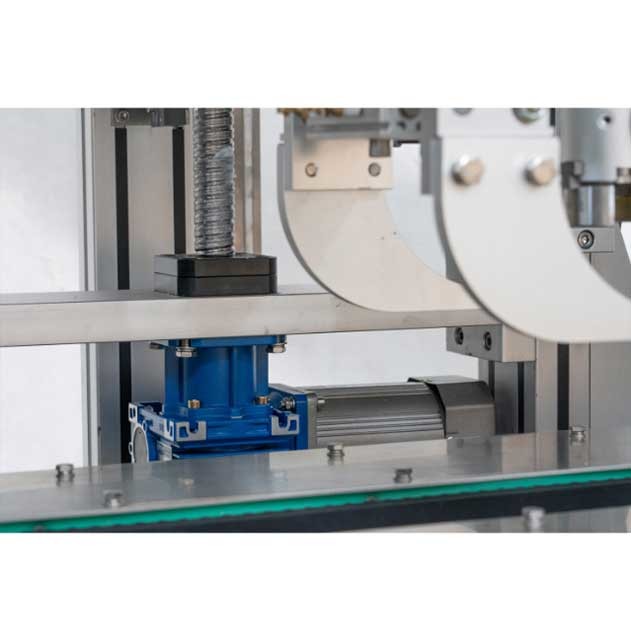

    product detials

    Parameter

    No.ModelNP-TC Series
    1Speed40pcs/Min base on one heads,80pcs base on two heads
    2Cap TypeScrew cap,snap caps
    3Bottle Diameter30-120mm customized
    4Bottle Height50-380mm
    5Cap Diameter18-120mm
    5Power3.5KW for single head capping
    6Air Pressure0.6-1Mpa
    7Voltage380V, 50Hz/60Hz
    8Weight800KG
    9Dimension2200mm*1400mm * 2250mm

    Main Components List

    No.ItemQTYUNITBRANDREMARK
    1Servo Motor4SETHCFAChina
    2Convertor6PCSHCFAchina
    3Touch Screen1PCSHCFAChina
    4Relay2-3PCSSiemensGermany
    5Sensor3PCSSICKGermany
    6Optical1PCSKEYENCEJAPAN
    7Air switch1PCSSchneiderFRANCE
    8Solenoid Valve1-2PCSAIRTACTAIWAN
