Rotary Pick And Place Bottle Capping Machine Fully Automatic
The pick and place capping machine is engineered and fabricated to
accommodate caps that cannot be directly fed onto bottles.
Primarily utilized for capping daily chemical bottles, cosmetics
containers, and pilfer-proof caps, this capper can be integrated
within our filling machine or used as a stand-alone unit. It is
available with 1 or 2 heads, capable of achieving speeds of up to
4,000 caps per hour (dependent on cap and bottle type and size).

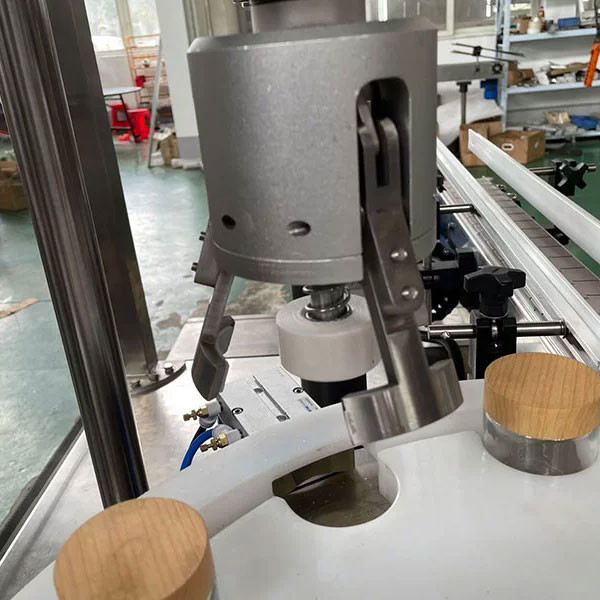

The pick and place (P&P) system is an automated capper designed
to pick, place, and torque caps for PET, PVC, and glass bottles.
Featuring a star wheel indexing system, it effectively controls and
manages delicate bottles. Additionally, the star wheel aids in
maintaining bottle stability during torque application.
The Npack auto pick and place capper is compatible with various
bottle types, including PET, PVC, plastic, and glass. To prevent
cap damage, it offers adjustable electronic torque settings.
Feature
1. Bottles are processed on star wheels, requiring a changeover of
the star wheel for different bottle sizes.
2. Ensures stable operation, primarily suitable for containers
under 1000ml.
3. Caps are fed using various systems, including elevators,
vibrators, and centrifuge plates, which store and transport the
caps to the dispenser and chute.

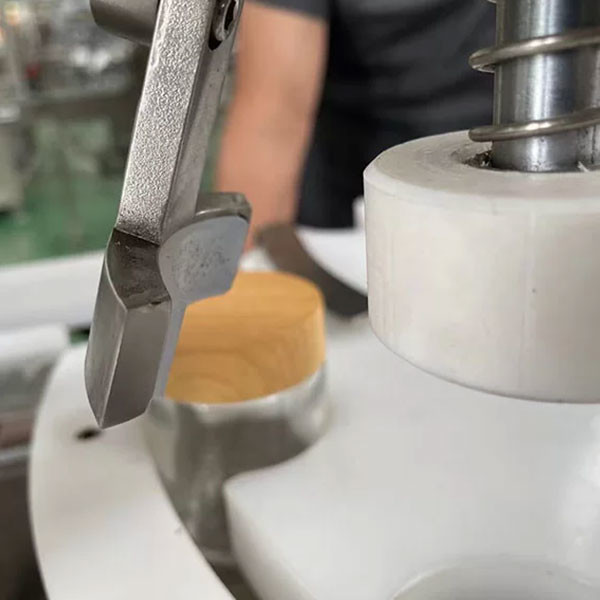

4. Cam divider or pneumatic rail, equipped with vacuum or robotic
hand systems, is employed for cap picking and placement.
5. Capping heads are customized based on cap types and driven by
servo motors.
6. Capping torque can be adjusted via the HMI (Human-Machine
Interface).
Parameter
| Capping heads | 1 or 2 |
| Capacity | 1500b/h to 4000b/h |
| Size | 2000mm*1400mm*2100mm |
| Voltage | 220V single phase |
| Power | 1.5KW |
Product Details
Principle of Operation:
Filled bottles are conveyed along a conveyor belt and guided into
an in-feed star wheel by an in-feed worm. As the bottles travel
through the in-feed star wheel, they individually pick up caps from
a delivery chute. Descending rotary sealing heads then apply the
desired pressure to the neck of each bottle. Sealing occurs in a
programmed roll-on manner, with the caps accurately positioned
mechanically by a rotating unscrambler to ensure correct alignment
into the chute. Once the chute is filled, the drive for the
rotating unscrambler is disengaged, preventing any potential damage
to the caps. Sealing is achieved through the rotation of the
sealing head and the transfer movement of sealing threading rollers
driven by a sealing cam. Finally, the sealed bottles are discharged
by an exit star wheel onto conveyors
After-sale Service
1.Install:
Our team of skilled technicians is ready to dispatch and install
the capping machine. The service fee covers installation, travel,
meal expenses, and so on.
2.Train:
For optimal performance of the capping machine. we offer on-site or
factory training for dealers, machine operators, engineers, and
technicians.
3.Guarantee:
When repairing the capping machine, expect efficient service, a
one-year quality assurance period, parts supply, and swift feedback
for troubleshooting.
4.Consulting Service:
Take advantage of our complimentary consultation service. Our
professional sales team will guide you to the most suitable
solution, complete with CAD drawing designs for the capping machine
5.Technical Support:
Benefit from our all-weather, long-term technical support. Simply
drop us an email or give us a call, and we'll provide quick
feedback, ensuring you can be carefree.
6.Spare Part:
During transportation, we include a set of vulnerable spare parts
for the chili sauce filling machine at no additional cost. You can
also order a comprehensive range of high-quality parts at any time.
