    Customization St-CNC-4028 CNC Automatic Shaped Glass Cutting Line with CE Certification

    St-CNC-4028 CNC Automatic Shaped Glass Cutting Line
    Feature:
    1. High automation
    2. Optimize software, save glass material
    3. High speed and high work efficiency
    4. Any shape available
    Introduction
    The line mainly contains three sections:
    1. ST-QSP-4028 Automatic Glass Loading Table
    2. ST-CNC-4028 CNC Automatic Shaped Glass Cutting Machine
    3. ST-BQZ-4028 Glass Breaking Table
    ST-QSP-4028 Automatic Glass Loading Table :
    St-CNC-4028 CNC Automatic Shaped Glass Cutting Line
    Characteristic
    • Mn bridge steel (Q345A ), perfect surface treatment
    • High quality imported NBR material vacuum chuck, Japan SMC vacuum switch
    • Touch screen operation
    • A key reset function
    • Alarm system for safety and wrong operation
    • Flat four-bar linkage lift structure (much more stable than guide screw lift)
    • High precision and wear-resisting gear and chain, full-enclosed chain
    • Imported PU material wheels
    • Germany technology vacuum pump 1.5Kw
    Mechanical parts
    NameBrand
    Transmission MotorCBG (TaiWan)
    Vacuum PumpJoySun (Shanghai)
    Electric parts:
    NameBrand
    PLCOMRON JAPAN OR SIMENS GERMANY
    Touch screenLG
    ConverterTECO
    Solenoid valveAIRTAC
    ST-CNC-4028 CNC Automatic Shaped Glass Cutting Machine :
    St-CNC-4028 CNC Automatic Shaped Glass Cutting Line
    Characteristic
    • Mn bridge steel (Q345A ), perfect surface treatment
    • Optimized table structure makes sure the stable table, dynamic balance and mechanics intensity perfectly matched
    • Cutting pressure automatic adjusted according to glass thickness
    • Cutter head 360 degree rotating
    • Climbing wheels on the cutter head for protecting the cutter assembly and the glass
    • Water proof surface panel, stainless steel side covered, water and deformation resisting
    • High quality felt, perfect level, anti-static
    • Automatic side locating system, pneumatic mechanical and photoelectric joint locating
    • Self-lubricating guide rail
    • Air filter for keeping the oil clean
    • Air float and belt transmit
    • Linear guide rail
    • Automatic oiling for transmission system
    Mechanical parts
    NameBrand
    Table surface panelHigh-density waterproof panel, roughness≤±0.20mm/m (Imported material)
    Rack and railALTANTA GEMERGY
    Belt/band pulleyKONYEAR
    Cutter wheels and holderBOHLE GEMANY
    Electric parts
    NameBrand
    CNC programGalil (USA)/Optima(Italy)
    Optimized softwareGuiyou (Best China brand)/ Optima(Italy)
    RelayOMRON JAPAN
    TerminalWAGO GERMANY
    Air-break switch/low-voltage apparatus/buttonMOELLER GERMANY
    Servo motorYASKAWA JAPAN
    Proportioning solenoid valveSMC JAPAN
    A.C. contactorSCHNERDER
    Laser SensorPANASONIC
    Position switchOMRON
    Frequency converterDELTA
    Pneumatic componentsAIRTAC

    Technical parameter
    ModelMax. glass sizeThicknessDimensions (L*W*H)Max. speedAir pressure
    CNC-40284000*2800mm3~19mm5320*3100*1300mm160m/min0.6~0.8MPa

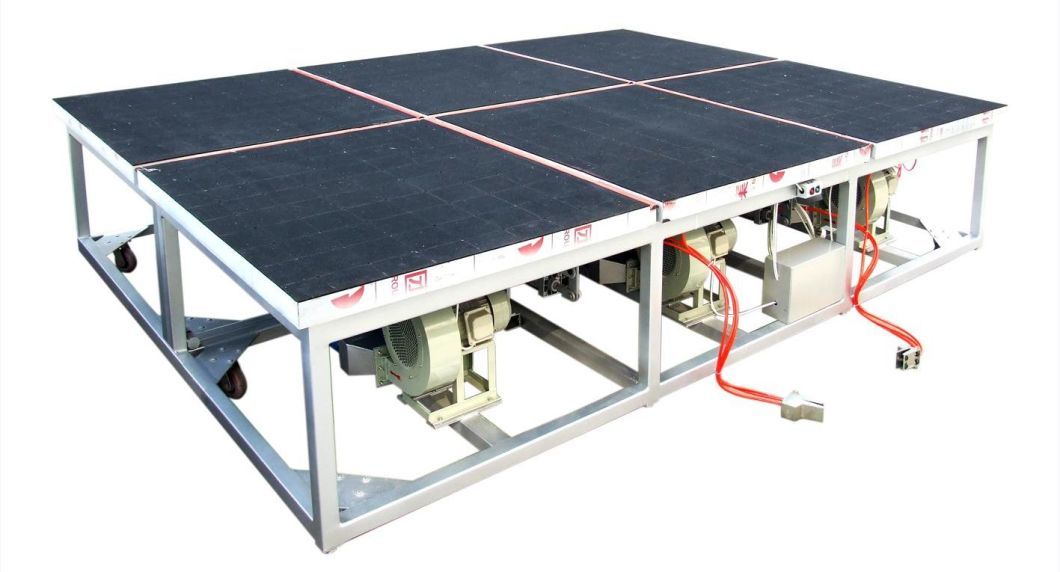

    ST-BQZ-4028 Glass Breaking Table :
    St-CNC-4028 CNC Automatic Shaped Glass Cutting Line
    Air float function
    High density table panel
    Breaking bar: 1+2


    Complete Line Technical Parameter:
    ModelMax. glass sizeThicknessDimensions (L*W*H)Max. speedAir pressure
    CNC-26202440*1830mm2~19mm11000*3000*1300mm150m/min0.6~0.8MPa
    CNC-40284000*2800mm3~19mm14500*3600*1300mm160m/min0.6~0.8MPa
    CNC-50245000X24403-19MM15500*3500*1300160m/min160m/min
    CNC-50335000*3300mm3~19mm17000*4212*1300mm160m/min0.6~0.8MPa
    CNC-60336000*3300mm3~19mm19980*4212*1300mm160m/min0.6~0.8MPa
    St-CNC-4028 CNC Automatic Shaped Glass Cutting Line

    St-CNC-4028 CNC Automatic Shaped Glass Cutting Line

    St-CNC-4028 CNC Automatic Shaped Glass Cutting Line

    St-CNC-4028 CNC Automatic Shaped Glass Cutting Line
    We make glass tempering furnace, glass edging machine, glass cutting machine, glass washing machine, glass drilling machine. Our company has more than 15 years.we have perfect after sales service and technology.contact with me if you have any request!
