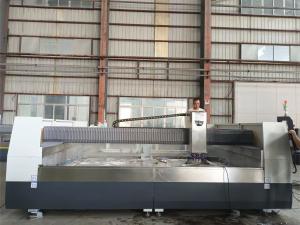

CNC GLASS CENTER SPECIFICATION: The CNC can realize automatic tool switching in multiple working procedures including grinding round edge
and straight edge.
8 sets of pneumatic positioning equipment.
The vacuum cup is made of high-quality rubber. Equipped vacuum cup with machine.
Positioning pile using pneumatic positioning is accurate and reliable.Equipped with 8 sets of positioning piles .
DB polishing wheel can automatically compensate electric pressure, wheels compensation automatically.
CNC control system, four axis control, remote collaboration function.
Delta servo motor and servo drive.
Delta high-speed spindle frequency conversion drive & frequency converter.
Linear guide rail and ball screw adopt Taiwan TBI or ShangYin products, power distribution control pump automatic lubrication.
Water-cooling high-speed variable frequency spindle, top speed is 12000 RPM, pneumatic tool swift.
Water ring vacuum pump 4kw maximum negative pressure - 0.093mpa.
The moving part of a cable use the special towing cable for machine tool.
Machine table use the thickened industrial aluminum plate or PVA.
Machine protection cover and water tank use stainless steel.
Supporting: one set of tools, one set of manual book.
The CNC power is 16KW . Dimension of equipment L2200*W4300*H2000mm, total weight 4500KG. Quality assurance, equipment quality assurance period is one year,
The supplier shall be responsible for any non-man-made damage within the warranty period.
Payment and delivery time: the deposit is 50% of the total payment; and after received 50% of the total
amount the machine will be delivered; Specific amount to bank to account real number or the receipt that
supplier finance gives is accurate, after receiving deposit, the contract becomes effective.
| CNC GLASS CENTER CONFIGURATION TABLE |
trip | X X-axis | 2650mm |
| Y Y-axis | 1150mm |
| Z Z-axis | 150mm |
| Head to table | 100mm |
Work table |
Table area |
2700X1200 |
The maximum load |
100KG |
| Machine frame |
Welding,Annealing heat treatment |
Thick 5-10mm |
Stainless steel water tank |
Thick 1.5-2.5mm |
Pneumatic tool shifting
Spindle
|
High speed motorized spindle |
FOSHUAN |
| speed | 3000-9000 speed / min |
| tools | BT40,2Sets |
| The cutter bar | BT40, 1 Set |
High speed motorized
spindle seal |
Air seal type |
| cooling |
Coolant circulation cooling mode |
| | XYZ
XYZ-axis speed | 0-20m/min |
precision |
Positioning accuracy |
±0.05 |
Repeat accuracy | ±0.03 |
Weight size |
Machine weight | 4500KG |
Machine power | 16KW |
floor space | 2200X4300X2000 |
main part
| Spindle frequency
converter | Delta |
Linear guide rails |
Taiwan Shangyin or TBI |
| Ball screw | /TBI
Taiwan Shangyin/TBI |
Control system | 4
Glass edge grinding special 4 axis
system |
| Servo motor | Delta |
Pump vacuum pump | Shanghai |
Accessories | Sucker | 8 8 Sets |
| Positioning pile | 8 8 Sets |
Maintenance tools | ER32 wrench | 1 1 Pcs |
Hexagon socket wrench | 1 8 Set |
17-19
Open wrench | 1 1 Pcs |
| NO. |
Part Name |
Part Name |
Model Number | Qty Extra with machine |
| 1 | 160 mm | Suction cup diameter 160 | | 10 |
| 2 | | Suction cup diameter 120 | | 10 |
| 3 | | Handwheel | | 1 |
| 4 | | Universal water pipe | | 10 |
| 5 | | Organ cover | | 5 |
| 6 | | Toolbox | | 1 |
| 7 | | Button | | 2 |
| 8 | | relay | | 3 |
| 9 | | The electromagnetic valve | | 2 |
| 10 | | Hand slide valve | | 2 |
| 11 | | trache | | 60m |
| 12 | | Connector | | |
| 13 | | Limit switch | | 3 |
| 14 | | Foot switch | | 1 |
| 15 | | Positioning column | | |
| 16 | ER32 | Collet | ER 32- 10 mm | 1 |
| 17 | ER32 | Collet | ER 32- 15 mm | 1 |
| 18 | ER32 | Collet | ER 32- 20 mm | 1 |
| 19 | ER32 | Collet | ER 32- 10 mm | 1 |
| 20 | BT40 | BT40 tool holder | BT40-ER32-70 | 1 |
| 21 | BT40 | BT40 tool holder -PIN LOCATOR | BT-40-000000 | 1 |
| 22 | BT40 | BT40 for WHEEL | ΦBT40SCA22 | 1 |
| 23 | BT40 | BT40 1/2" Gas Thread | | |
| 24 | | | | 1 |
| 25 | | | PCΦ8-3 | 10 |
| 26 | | | PC Φ8-02 | 10 |
| 27 | | nylon clylinder pin | Φ30 | 2 |
| 28 | | Adjustable wrench | | 1 |
| 29 | | Allen wrench | | 1 |
| 30 | | | | 5 |
