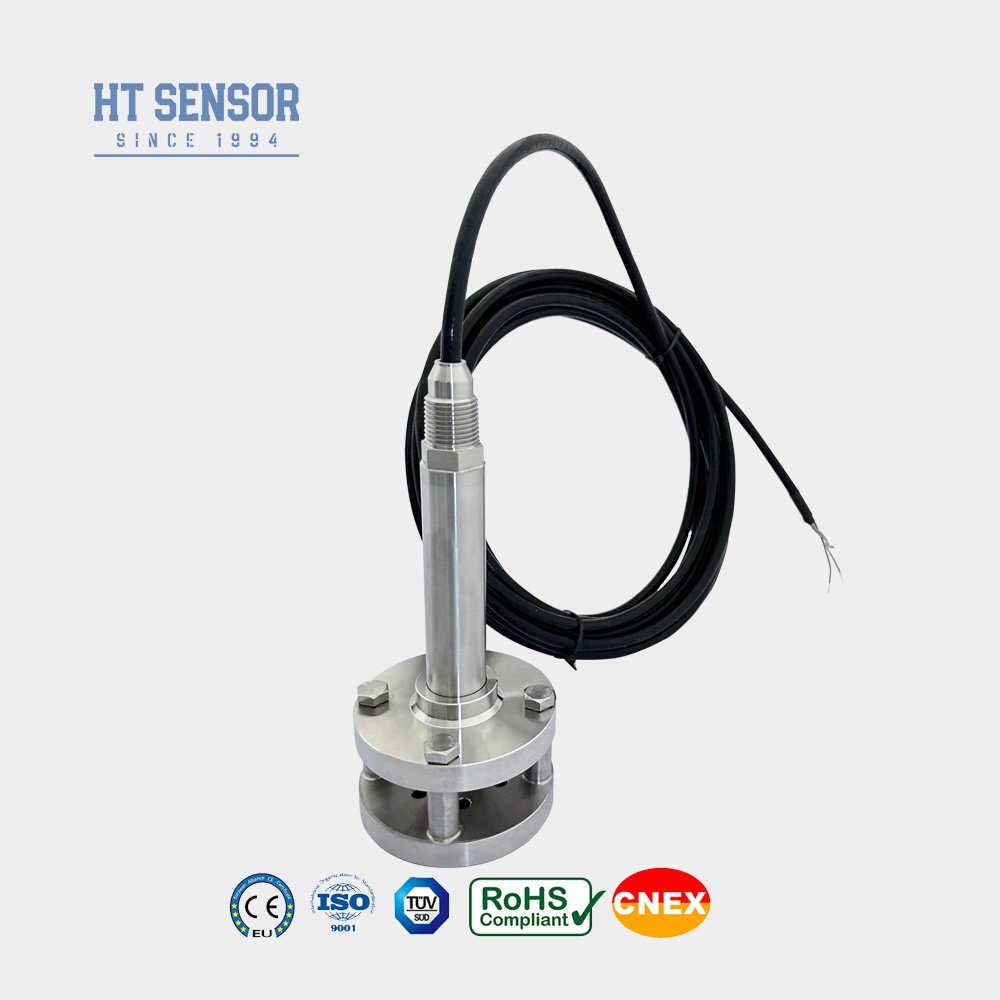

BH93420-WS Sewage Level Sensor
Introduction of liquied level transmitter:
BH93420-WS sewage level sensor has a rugged design with a full 316l
stainless steel construction. It can convert the changes of various
liquid level parameters into standard current signals and send them
to the operation control room for centralized display, alarm or
automatic control by secondary instruments or computers. Its good
structure and installation mode, can be applied to high
temperature, high pressure, strong corrosion, easy crystallization,
anti-clogging, anti-cold bonding and solid powder, granular
materials and other special conditions of liquid level, material
level or material level continuous detection, can be widely used in
various industrial process detection and control.
Product Features of liquied level transmitter:
- Specially designed for harsh environments
- Explosion-proof marking : ExiaIICT6
- High protection : IP68
- Full 316L stainless steel structure with excellent corrosion
resistance
- High precision and good stability
Applications of liquied level transmitter:- Compatible with 316LSS, non-corrosive liquids.
- Monitor the oil level of diesel fuel tanks, fuel tanks and other
fuel containers.
- Level measurement of contaminated liquids such as sludge tanks,
clarification tanks, digesters, alum tanks, chemical storage tanks,
sump pits and reservoirs.
| Performance Parameters of liquied level transmitter |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | -10-80ºC |
| Operating Temperature | -20~100ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~2.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane,PTFE |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V | 5VDC |
1. Please ensure that the measured medium is compatible with the product
components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference,
please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is
recommended that users install lightning protection devices on-site
and ensure the product and power supply are reliably grounded.| Order Guide of liquied level transmitter |
| BH | Code | Outline Construction |
| WS | Pressure Transmitter |
| Measurement Range | 0~10m…400m |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| | Code | Cable Material |
| C1 | PE |
| C2 | PU |
| C3 | PTFE |
.
