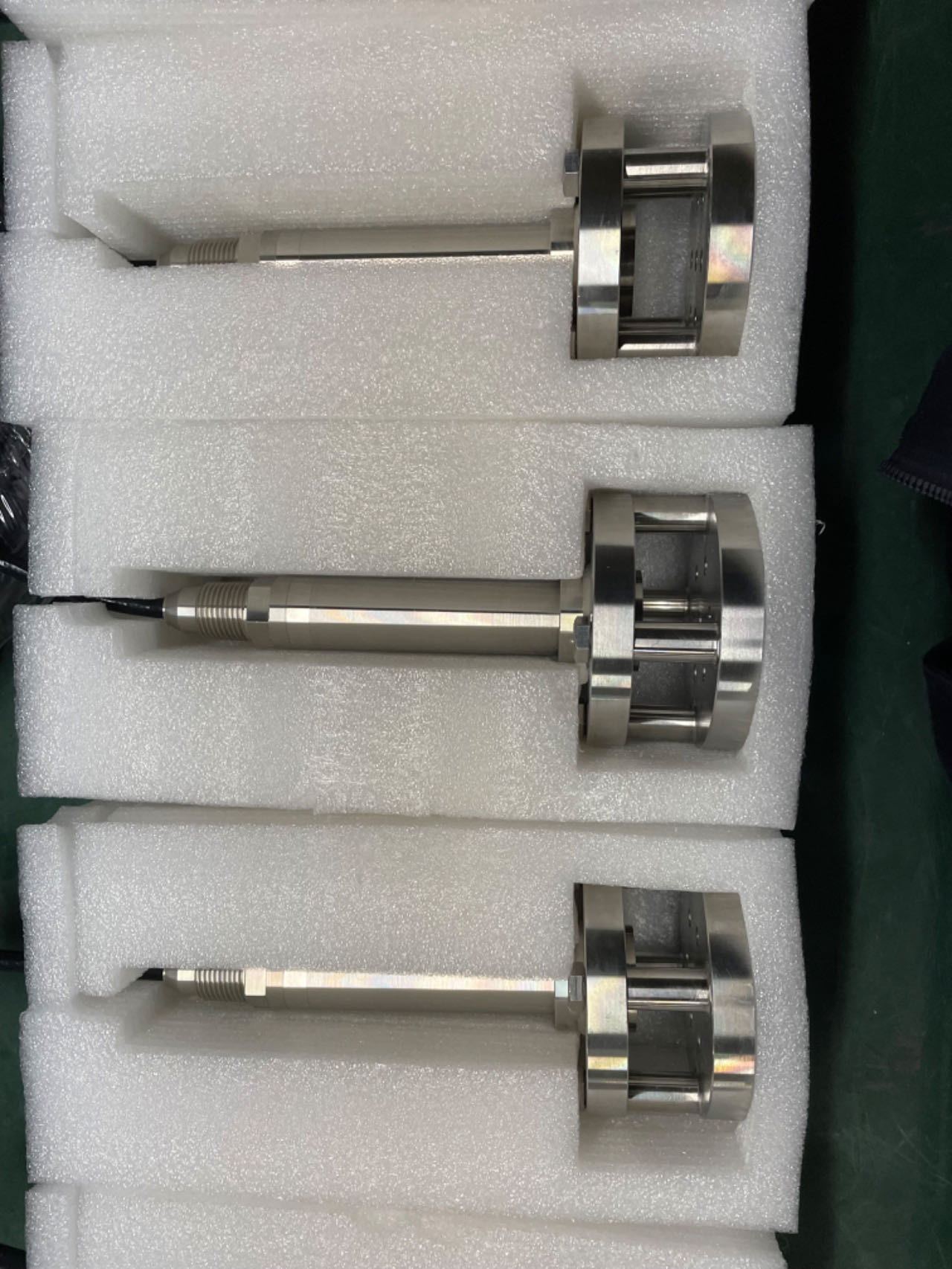

BH93420-WS Sewage liquid Level transmitter SensorIntroduction of liquid level transmitter sensor:BH93420-WS sewage liquid level transmitter sensor is a pressure
sensor for measuring liquid level.Based on the measured liquid
static pressure and the height of the liquid is proportional to the
principle of adopting isolation diffusion silicon sensing element
or sensitive ceramic capacitance pressure sensor, the static
pressure is converted to electrical signals, after temperature
compensation and the linear correction, converted into a standard
electrical signals. Generally suitable for petrochemical,
metallurgy, electric power, pharmaceutical, water supply and
drainage, environmental protection and other systems and industries
of various media liquid level measurement.
Product Features of liquid level transmitter sensor:- Specially designed for harsh environments.
- Explosion-proof marking : ExiaIICT6.
- High protection : IP68.
- Full 316L stainless steel structure with excellent corrosion
resistance.
- High precision and good stability.
Applications of liquid level transmitter sensor:- Compatible with 316LSS,noncorrosive liquids.
- Monitoring of oil level in diesel tanks, fuel tanks, and other fuel
containers.
- Level measurement in polluted liquids, such as sludge tanks,
clarifiers, digesters, alum tanks, chemical storage tanks, sewage pits, and
water reservoirs.
| Performance Parameters of liquid level transmitter sensor |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | -10-80ºC |
| Operating Temperature | -20~100ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~2.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane,PTFE |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V | 5VDC |
1. In the selection, please ensure that the tested medium is
compatible with the product parts in contact with it.
2. When the depth of the medium needs to be measured, the density
of the medium to be measured should be provided.
3. For strong electromagnetic or RF interference, please provide
detailed information to our company and indicate it in the order.
4. To ensure the reliable operation of the product, you are advised
to install lightning protection devices on site and ensure that the
product and power supply are reliably grounded.
| Order Guide |
| BH | Code | Outline Construction |
| WS | Pressure Transmitter |
| Measurement Range | 0~10m…400m |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| | Code | Cable Material |
| C1 | PE |
| C2 | PU |
| C3 | PTFE |
FAQ:
1. Q: What are the characteristics of your pressure sensor
transmitters?
A: High precision, durable, excellent performance. Customization is
available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can customize products to meet specific
needs. We offer OEM and ODM services.
3. What is your production capacity?
A: Our production facility can produce up to 30,000 pressure sensor
transmitters per month, so we are well equipped to meet the needs
of large-scale orders. However, it is recommended that you contact
our sales team in advance to ensure a smooth production and
delivery schedule.
4. Q: What is the general lead time?
A: Standard model 5~8 working days. Custom products may vary.
5. Q: How is the product priced? Are there any discounts?
A: Competitive prices, discounts for bulk orders or long-term
partners.
6. Q: What is the warranty period of your product? What about
after-sales service?
A: Our warranty period is 24 months after delivery, reply to your
question within 24 hours after sale, remote guidance through the PC
network at any time.
