1.5mm-2.5mm Strut Channels Roll Forming Machine Pv Support Bracket Roll Forming Machine

1.5mm-2.5mm Strut Channels Roll Forming Machine PV Support Bracket Roll Forming Machine

1. Solar Strut Channel Technical Parameter

PV support bracket Roll Forming Machine is a solar mounting support cold roll formed steel Channel that used as solar panel support or constructions for structural.

The channel is formed from metal coil strips, and then roll formed by struct channel roll forming machine into an open channel section with lips to provide additional stiffness.

The machine is able to produce 2 or 3 or more types of strut channel by adjust the roll forming mould.The standard strut channel sizes are: 41*41, 41*21, and also some customized shapes.

Material thickness thicknesses: 2.00 and 2.50mm hot-dip galvanized, G400 Z350

Also can do inturned edges with teeth And the machine is according to the EN 2081:2011 or EN ISO 4042:2001

2. Solar Strut Channel Machine Components

Solar photovoltaic strut roll forming machine can produce several shape products as profile.

The different size of channel is adjusted automatically.

When change different specification, need to change the cutting mould.

4. Solar Strut Channel Application

1.These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.

2.Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. S

3.Solar frame panel is used to mount, brace, support, and connect lightweight structural loads in building construction.

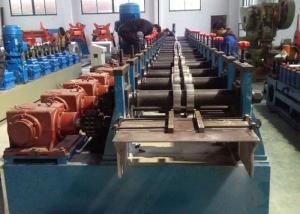

5. Machine photo
