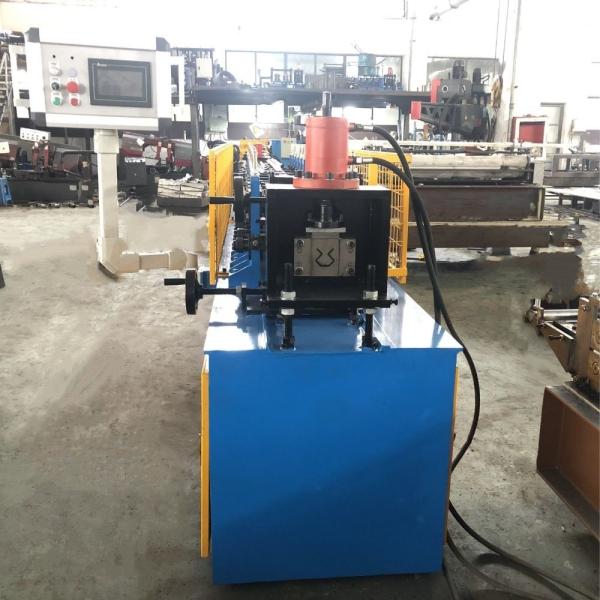

10-12m/Min V Strut Channel Roll Forming Machine
It is a automatic production line, including 3 tons passive
decoiler, servo feeder, hydraulic punching, roll forming, hydraulic
cutting, passive output table, spare parts, control box.
1. V Strut Channel Technical Parameter
1.Forming thickness: 2.2-2.5mm,galvanized coils yield
strength≤G250MPa
2.working Line speed: 12M/min(not include cutting and punching stop
time)
3.Max speed: 3-4M/min include cutting and punching stop time
4.Hydraulic punching device: 1 set
5.roller stations: about 16 stations main roller
6.material of roller: bearing steel, quenching treatment.
7.material of main shaft: 45# fine steel
8.diameter of main axis: ￠75mm
9.main motor power: 7.5kW
10.motor power of hydraulic station: 4KW
11.hydraulic station pressure: 12MPa
12.electric control system: whole line adopted PLC control,
Panasonic PLC
13.cutting type: hydraulic drive, cut after forming
14.material of cutting blade: Cr12 , quenching process
15.Drive way: Chain drive
16.Touch Screen--Panasonic Japan
17. Encoder--Omron, Japan
18 Electric parts--Schneider
2. V Strut Channel Machine Components
| S.N | Equipment name | Quantity |
| 1 | 3T passive un-coiler | 1 set |
| 2 | Feeding guide | 1 set |
| 3 | Main roll forming machine | 1 unit |
| 4 | Main roll forming machine | 1 set |
| 5 | Hydraulic cutting | 1 set |
| 6 | control box | 1 set |
| 7 | Out tables | 2 units |
| 8 | Spare parts | 1 package |
| 9 | Safety cover | 1 set |
3. Machine Layout

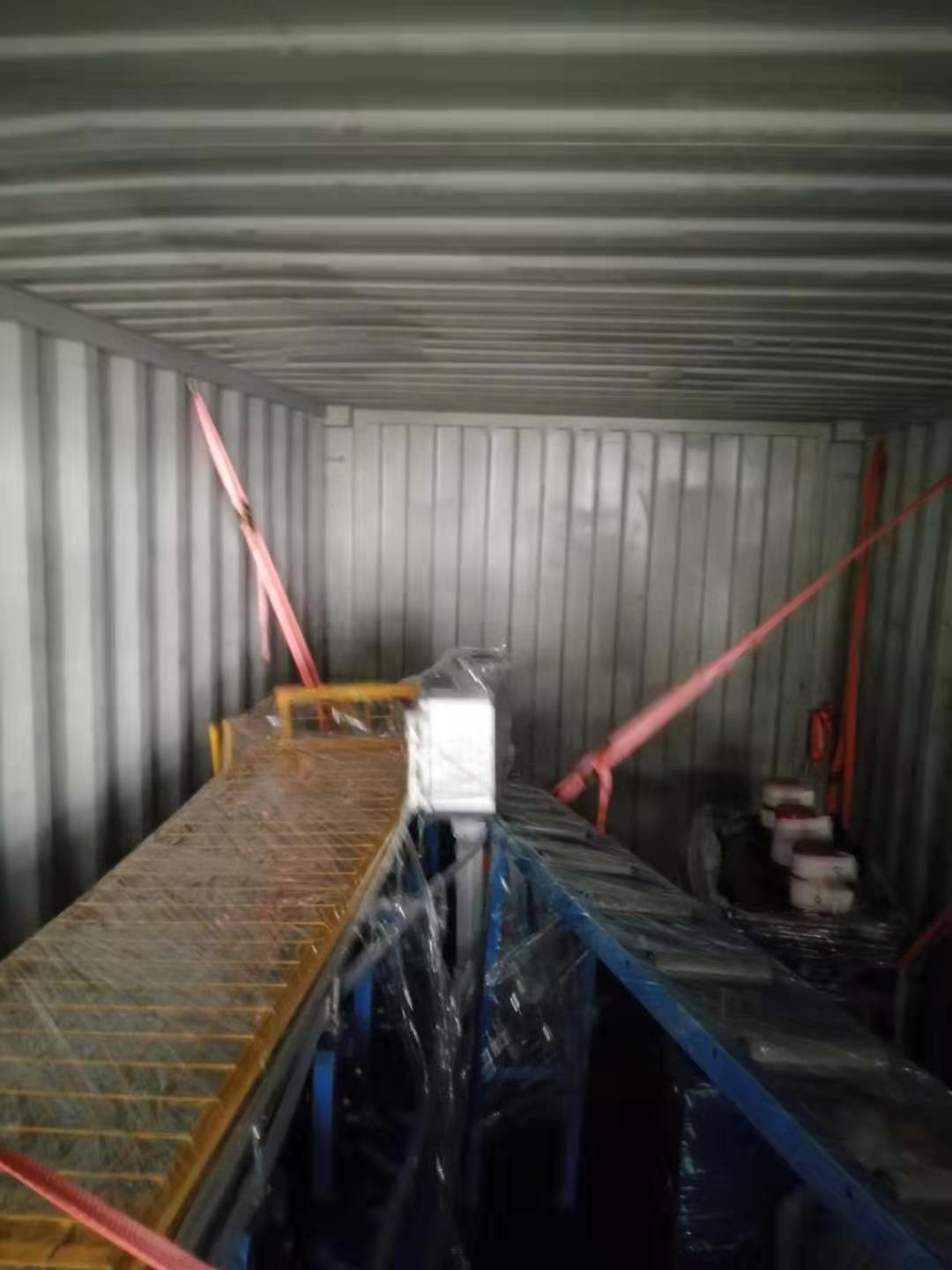

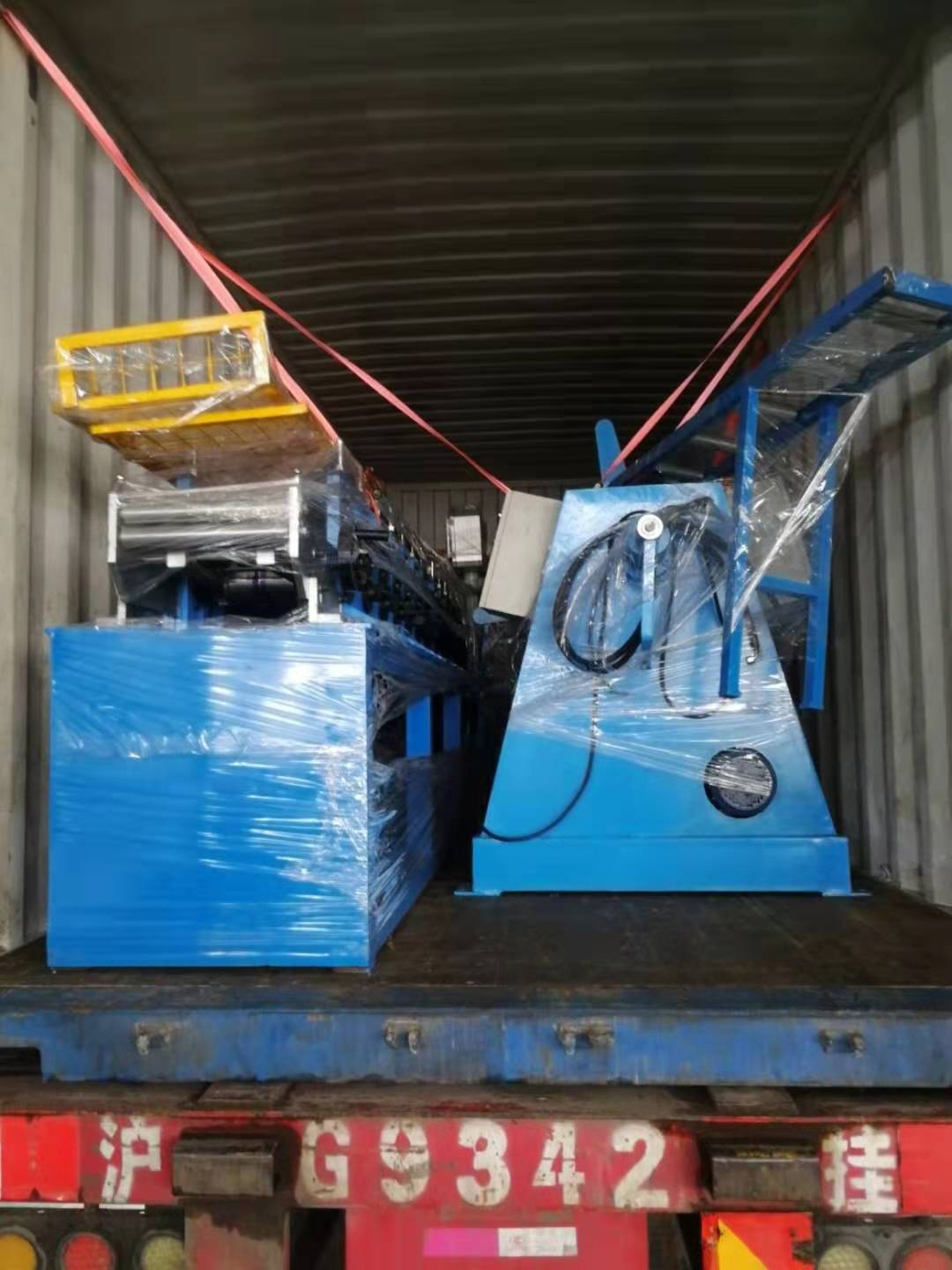

Loading Pictures:
4. Our Services
Warranty: One year ,and we will provide the technical support for
the whole life.some spare parts are available.
1. As the factory, we will recommend the right profile machine to
customer, and give the professional advice.
2. Confirm the final decision during the discussion.
3. The sale person will give customer updates for each period
during the production process.
4. We finish the machine within the confirmed date, and shipping
the goods to customers safely and faster.
5. Provide the right documents to customers.
6. Give the tips(include photos, videos and manual) for
installation and operation.
7. If the buyer can not make the installation or machine appeared
the problems, if possible, we will arrange our engineer to debug
within one week. The charge for technician include the visa, round
tickers, food, accommodation and USD100/person/day for salary.
