Electric Energy Meter LCD, Segment LCD Screen For 86 Multi-Function
Three-Phase Electric Energy Meter
SAEF Technology is specializing in the production of TN LCD, VA
LCD, HTN LCD, STN LCD, FSTN LCD, EBTN LCD and other liquid crystal
displays LCD with LED backlight. SAEF's products are used for many applications front screen like fuel dispenser LCD, temperature and humidity meters LCD, electronic scales LCD,
multimeter LCD, smart meter LCD, water meter LCD, gas meter LCD,
bank money counter LCD, cash register LCD, stock machines LCD,
telephone LCD, walkie-talkie LCD, massager LCD, treadmill LCD, fat
meter LCD, air conditioner LCD, Audio LCD. Car DVD LCD, microwave
oven LCD. remote controler LCD, learning machine LCD, electronic
dictionary LCD, MP3 LCD, computer, control LCD panel , CNC
refueling machine LCD, industrial computer LCD, game console LCD, perpetual calendar LCD, clock LCD. Instrumentation LCD.
Healthcare machine LCD, Thermostat LCD, Home Appliance LCD,etc.
| Product: | Electric Energy Meter LCD | Display Mode: | Positive Transflective |
|---|
| Driving Condition: | 1/8 Duty Cycle, 1/4 Bias | Operating Voltage: | 5.0 V |
|---|
| Optics: | 6:00 | Display Type: | LCD |
|---|
| Size: | 3.8 Inch | Backlight: | White / Amber / Blue / Yellow |
|---|
| Operating Temp: | -30°C To +80°C | Storage Temp.: | -35°C To +85°C |
|---|
| Connection: | Metal Pin Connection | Compliance: | REACH & RoHS Compliant |
|---|
| Dot Space: | 0.1 Mm | Response Time: | 0.1 Ms |
|---|
LCD screens can now be seen on many electronic products, and there
are many types of LCD screens, including TN type, HTN type, STN
type, FSTN type, TFT type and many other types.
To put it simply, the LCD screen is filled with liquid crystal
material between two parallel plates, and the voltage can be used
to change the arrangement of molecules inside the liquid crystal
material, so as to achieve the purpose of shading and transmitting
light to display different shades, and the power consumption of the
LCD screen is very low, so it is favored by consumers.
This time, let's take a look at the segment code LCD, also known as
segment LCD, is the most basic one of LCD products, segment LCD has
just begun to apply, mainly to replace LED digital tubes, it is
much lower than digital tube power consumption.
The pixel arrangement and shape of segmented liquid crystal are
very free, the most common is the field similar to digital tube, of
course, segmented liquid crystal can also be made into arbitrary
shapes, such as patterns, text, etc.
There are three display modes of segment liquid crystal, reflective
type, transmissive type, and transflective type. A reflective plate
is added behind the bottom polarizer of the reflective segment
liquid crystal, which is generally used in a well-lit environment.
The base polarizer of a transmissive segment liquid crystal is a
transmissive polarizer, and it requires continuous use of the
backlight to see the displayed content.
Transflective segmental liquid crystal is in between the above two,
the bottom polarizer can be partially reflective, generally with a
backlight, when the light is good, the backlight can be turned off,
and the backlight can be lit when the light is poor.
The display mode of segment LCD is also divided into positive
display and negative display, positive display refers to black
characters on a white background, and positive display is the best
in reflective and trans-reflective display; The negative display is
white on a black background, and the negative display is generally
used for the transmission type, plus the backlight is used.
The connection between the segment LCD screen and the circuit board
can be connected by pins, zebra strips, zebra paper, etc.
Segment LCD uses different colors of backlight to display different
colors.

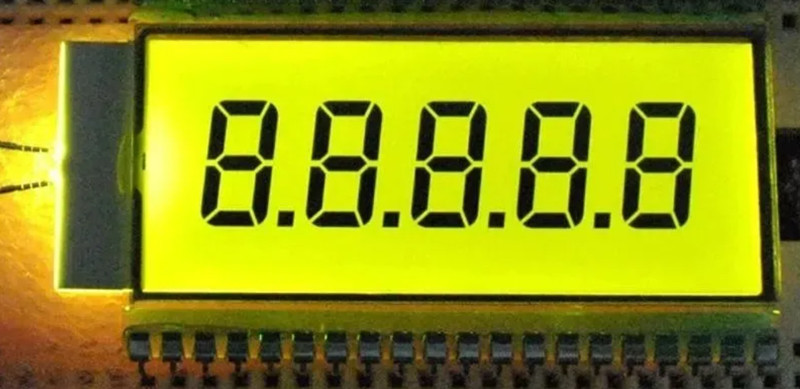

Electric Energy Meter LCD, Segment LCD Screen For 86 Multi-Function
Three-Phase Electric Energy Meter Product image
