Description
Monochrome TN/HTN/STN LCD display panels have the following
advantages:
1. Low cost
Compared to other LCD screen technologies, monochrome TN/HTN/STN
LCD displays provide a low-cost customized solution for large-scale
applications.
2. High contrast
According to the design, the monochrome TN/HTN/STN LCD panel
displays dynamic contrast between visible and hidden elements.
3. Low power consumption
This type of monitor only requires a small amount of battery power,
making it very suitable for battery powered devices.
Feature
1 Display Mode:VA/ TN/ TRANSMISSIVE/ NEGATIVE
2 Driving Condition: 1/8Duty , 1/4Bias,5.0V
3 Viewing direction:6:00 o’clock
4 Operation temperature: -0°C TO 50°C
5 Storage temperature: -10°C TO 60°C
6 Connector: PIN
Electro-Optic Characteristics
| NO | ITEM
| Symbol
| TEMP(℃)
| Rating | Unit
| Note
|
Min
| Typ
| Max
|
| 1 | Operating Voltage | Vop | 25 | 4.8 | 5.0 | 5.2 | V | Note1 |
| 2 | Response Time
| Rise Time
| Tr | 25 | | 100 | | ms | Note2 |
Fall Time
| Tf | 25 | | 150 | |
| 3 | Operating Frequency | fF | 25 | | 75 | | Hz | |
| 4 | Contrast Rate | Cr | 25 | 2 | 5 | | | Note3 |
| 5 | Viewing Direction | 6:00 o’clock | | Note4 |
| 6 | Viewing Angle Cr≥2
| 12H =90° | θup | 25 | | 5 | | Deg | Note4 |
| 6H f =270° | θdown | | 40 | |
| 3H f =0° | θleft | | 30 | |
| 9H f =180° | θright | | 30 | |
| 7 | Current Consumption | Is | 25 | | 3.0 | | μA | Note5 |
Reliability Testing
| Test Item | Test Condition |
Storage at high Temperature and humidity
| 60℃,90%RH,48hrs； |
Storage at low temperature
| -10℃,48hrs |
Storage at high temperature
| +60℃,48hrs |
Operate at low temperature
| 0℃,48hrs,specified voltage |
Operate at high temperature
| +50℃,48hrs,specified voltage |
Customization
| Applicaion | Meter display |
| Display Content | digits+dots+patterns |
| Operating voltage | 3.3V or according to your demand |
| Driving method | according to your request |
| Viewing angle | 6H 9H 12H |
| LCD mode | TN STN FSTN HTN VA DFSTN optional |
| Display mode | Negative positve Reflective transfelective transmissive |
| Conecting mode | Metal pin / rubber / others |
| Backlihgtlight | Nil or with white&blue backlight |
| Voltage driving | Dynamic voltage |
| Controller | Nil or according to request |
| Interface | I2C or other |
| Operating voltage | -20~+70℃(common),according to your request |
| Storage voltage | -30~+80℃(common),according to your request |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free, payed warranty lifttime |
| Packaging | Plastic bag +foam+carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-20 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | Rohs, Reach |
The display types of monochrome LCD panels:
TN (twisted nematic)
The most common segment display fluid
Minimum cost selection
HTN (Hi-Twisted Nematic)
Provide the wider perspective
The twisting angle of liquid crystal molecules is 100-120 degrees
to get wider viewing angle than TN one.
STN (Super Twisted Nematic)
Provide the widest perspective
More expensive than TN
FSTN (thin film super twisted nematic)
Provide the clearest contrast
More expensive than TN

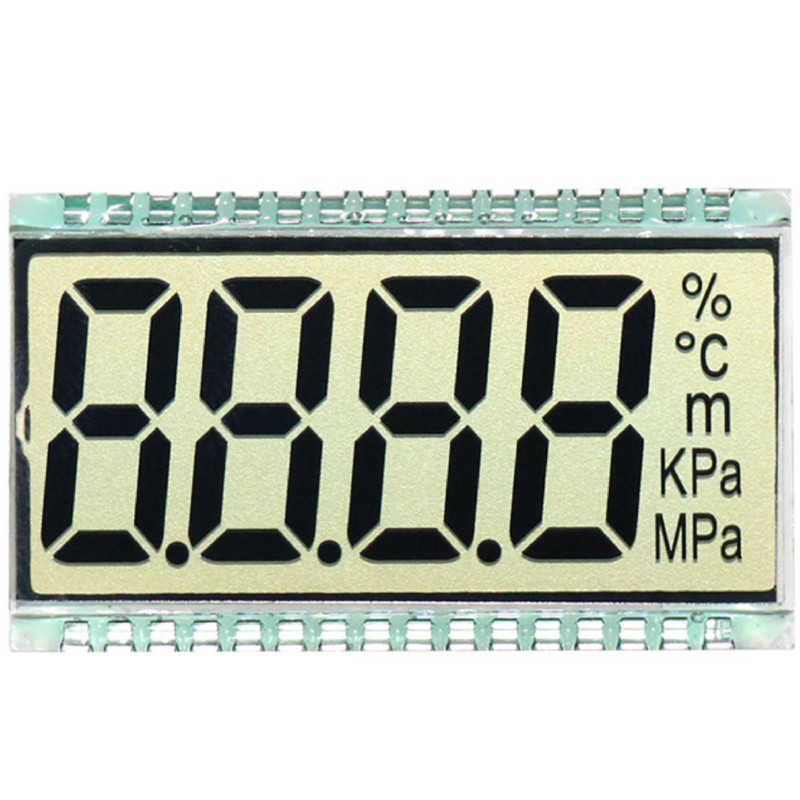

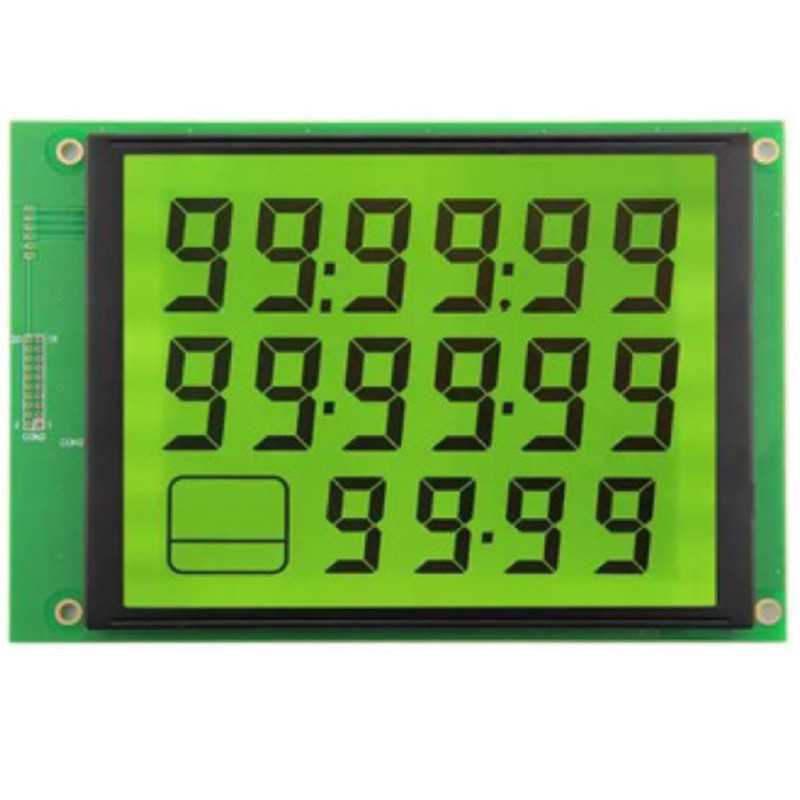

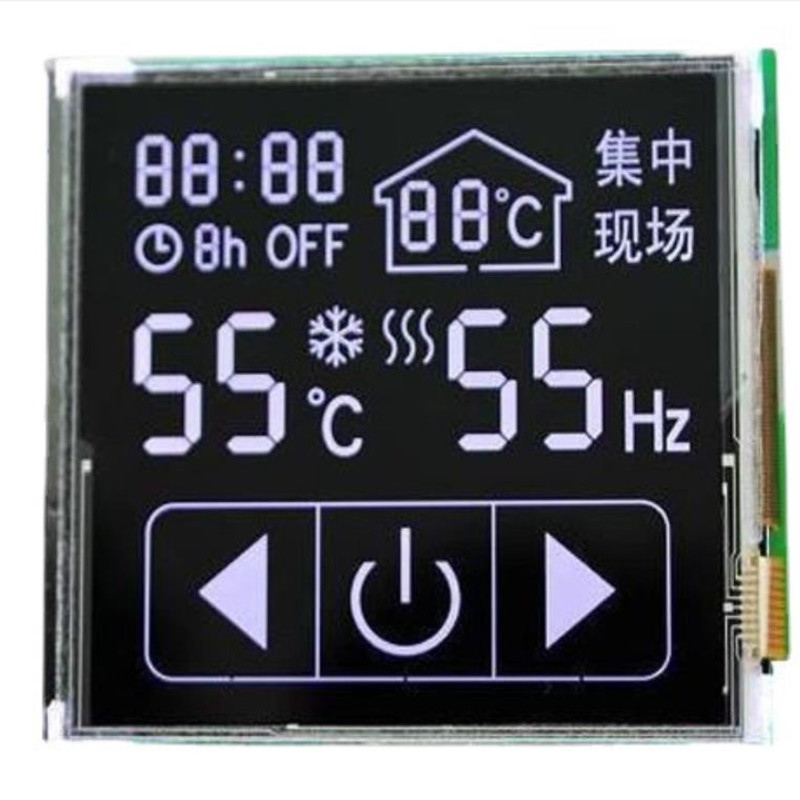

Products Presented
