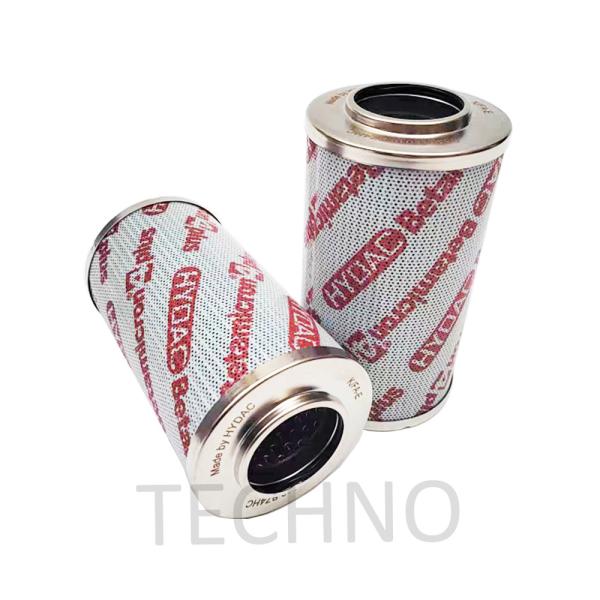

HYDAC Filter Components 0110-D-020-BN6HC
30~200 Bar Clip-on End Cap Stability
Product Description:
Precision Filter Elements are an accurate filtration system that
provides precision filtration components for air or liquid. These
filter elements are designed to operate at a temperature range of
-30 to 100℃, with a pressure difference of 30 to 200 Bar and a
filter efficiency of up to 99.99%. The end caps of the filter
elements are clip-on, making them easy to assemble and remove.
Precision Filter Elements are ideal for any application that
requires precise and reliable filtration. Their filter efficiency
ensures that particles and contaminants are removed from the air or
liquid in a reliable and accurate manner. Furthermore, the clip-on
end caps make these filter elements easy to assemble and remove,
ensuring a quick and hassle-free filtration process.
For those who require a reliable and accurate filtration system,
Precision Filter Elements are the ideal choice. Their precise
construction, reliable operating temperature, pressure difference
range, filter medium, and filter efficiency make them the perfect
choice for any filtration application.
Features:
HYDAC Filter Elements are the preferred choice when it comes to
high-quality hydraulic components, as they have a remarkable
capacity to keep contaminants away from the system.
The product range of these filter elements includes disposable
elements and cleanable elements and are suitable for filtering
mineral oils, non-flammable fluids, and rapidly biodegradable
fluids.
HYDAC Filter Elements also provide superb adsorption of the finest
particles over a wide differential pressure range, beta value
stability, contamination retention capacity, good fluid
compatibility (because of epoxy resins for impregnation and
bonding), element protection (with excellent collapse burst
pressure resistance even during cold starts and differential
pressure surges), and excellent flow fatigue stability.
Filtration ratings of these filter elements range from 3μm to 5μm,
10μm, and 20μm absolute.
Technical Parameters:
Contamination retention capacity to ISO 4572 for
Betamicron® elements |
| BN3HC |
| Size | 3 µm | 5 µm | 10 µm | 20 µm |
| 30 | 3.9 | 4.1 | 4.7 | 5.2 |
| 60 | 5.3 | 5.7 | 6.4 | 7.1 |
| 110 | 11.1 | 11.9 | 13.3 | 15.4 |
| 140 | 14.6 | 15.6 | 17.6 | 19.5 |
| 160 | 15.0 | 16.0 | 18.0 | 20.0 |
| 240 | 25.8 | 27.5 | 31.0 | 34.4 |
| 280 | 56.5 | 60.3 | 67.8 | 75.3 |
| 330 | 36.9 | 39.4 | 44.3 | 49.2 |
| 500 | 60.7 | 64.8 | 72.9 | 81.0 |
| 660 | 80.4 | 85.7 | 96.4 | 107.2 |
| 990 | 117.3 | 125.1 | 140.7 | 156.4 |
| 1320 | 160.8 | 171.4 | 192.8 | 214.4 |
Applications:
Our filters can be used with a variety of different hydraulic media
such as mineral oils, lubrication oils, non-flam fluids, synthetic,
and rapidly biodegradable oils.However, for any use involving water, please contact our technical
sales department for compatibility advice.
Our filter material supports on both sides, as well as its high
inherent stability, make our filters resistant to flow fatigue,
meeting even the highest standards set by ISO 3724.
Customization:
- Brand Name: HYDAC
- Model Number: 0030-D-003-BH3HC
- Place of Origin: China
- Certification: CE
- Minimum Order Quantity: 1
- Price: Negotiation
- Packaging Details: Carton /As The Clients Require
- Delivery Time: 1-7Work Days After Payment
- Payment Terms: T/T, Western Union,Paypal
- Supply Ability: 5000PCs per month
- Filter Element End Cap: Clip-on
- Filter Element Length: Multiple Lengths
- Filter Element Core: Metal Fibre
- Filter Element Diameter: 55mm
- Pressure Rating: 0.6MPa
We provide custom-made Precision Filter Assembly, High Accuracy
Filter and Precision Filter Elementry with superior quality and
competitive price.
Packing and Shipping:
Precision Filter Elements are securely packaged in corrugated
cardboard boxes to ensure safe arrival at their destination. Proper
cushioning material is included to protect the product and keep it
from shifting during transit. Containers are labeled with the
product code, weight, quantity, and a barcode.
Shipping is via FedEx, UPS, or other carriers depending on customer
preference. All orders are shipped with tracking information and
insurance.
