    Micro NEMA 11 Stepper Motor 0.67A 2 Phase Wiring For Revolving Light

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 28SHD4401-20B
    Certification : CE,ROSH,ISO
    Price : $6.49-$9.5
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Micro NEMA 11 Stepper Motor 0.67A 2 Phase Wiring For Revolving Light

    Hot Sale Micro NEMA 11 Stepper Motor 0.67A Stepping Motors 2 Phase Wiring For Revolving Light


    28*28*44mm 0.67A 4.56V 2 Phase Wiring 1.8 Degree Stepper Motor Nema 11 Micro Stepping Motor

    The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

    Use with a microstepping driver to reduce vibration and achieve higher step resolution.

    Choose a baseline version or request your own customized configuration.


    Features:

    • Bipolar or unipolar versions available

    • Hybrid stepper construction

    • Available in single or double shaft versions

    • CE and RoHS approved

    • Customizations on request

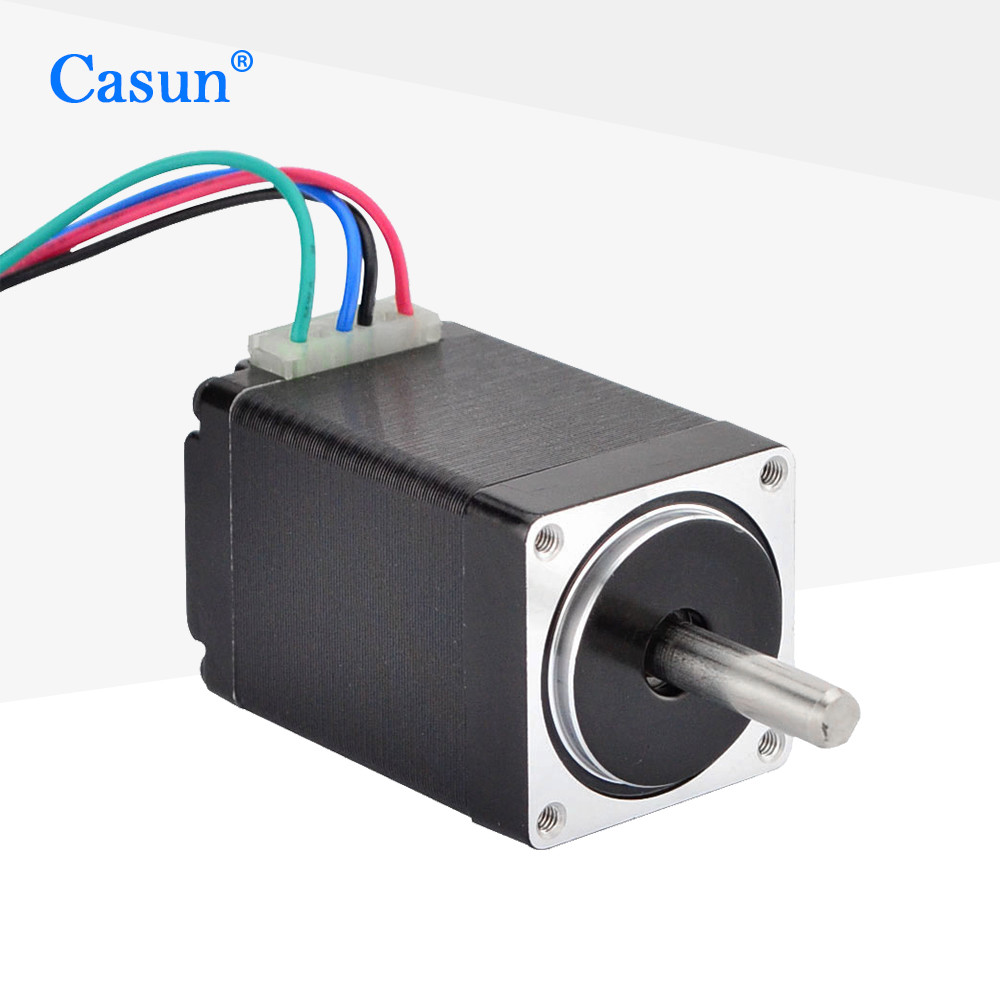

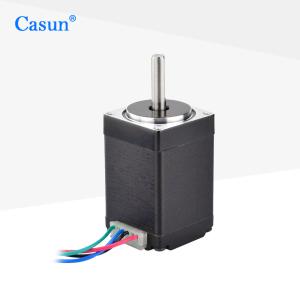

    Appearance

    Dimensions


    Motor Specifications

    Step Angel

    1.8 °

    Fram Size

    28 mm

    Number of Phase

    2 Phase

    Rated Current

    0.6 7A

    Holding Torque

    95 mN.m

    Resistance

    6.8 ohm

    Inductance

    4.9 mH

    Rotor Inertia

    9 g-cm²

    Motor weight

    0.16 kg

    Number of leads

    4

    Connection

    Bipolar

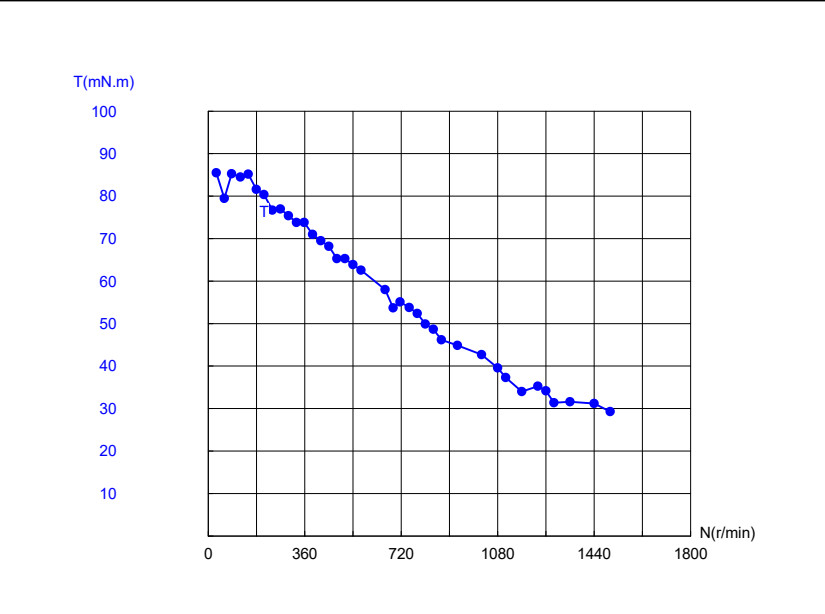

    Torque Curves




    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:
    Encoder | Brake | Gearbox | Connector

    Please click the "Get a quote" button below to tell us your requirements.
