    Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle

    Ask Lasest Price
    Brand Name : TOM
    Model Number : XG-6B/8B
    Certification : CE, ISO,CO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 25 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle

    XG-6B/8B Fully Automatic Stinless Steel Rotary PLC Controlled Capping Machine for bottle

    Major characteristics

    This machine integrates bottle inlet, cap sort, cap feed, capping, and bottle outlet function together.

    Well suitable for diversified caps, also very friendly applicable for anti-theft caps. Caps are grasped and positioned well, harmless to caps during the machine running. Fast speed of machine and high qualified rate of capping, it bears step less adjusting, can reach the international advanced level of similar products.

    Electric elements use international famous brand, which ensure the machine’s quality and its service lifetime, reasonable structure, superior performance, low voice, friendly environmental.


    Working principle:

    (1)This capping machine adopts rotary type for screwing caps. Caps are oriented and supplied to the cap grasping area, capping heads grasped caps send to capping area by compressed air for doing

    Capping work, finally capper bottles are outlet by conveyor.

    (2) Bottle inlet can cap inlet are controlled synchronously

    (3) Reversed caps can be ejected. (Optional function)


    Technical Parameter:

    No.ItemsPerformance
    01Suitable bottles

    height 60mm~280mm

    diameter Φ30mm~Φ110mm(special size can design)

    02Suitable caps

    height: 10mm~35mm

    diameter: Φ20mm---Φ80mm (special size can design)

    03Power supplyAC 380V 3phase; 50Hz
    04Power4.0 Kw
    05NO. of Capping heads6/8 heads
    06Production capacity4000-9000 bottles/hour
    07Pneumatic (air-operated) source0.6Mpa clean and stable compressed air
    08Overall dimension (L×W×H)2000mm×1100mm×2200mm
    09Machine weight1200 KG

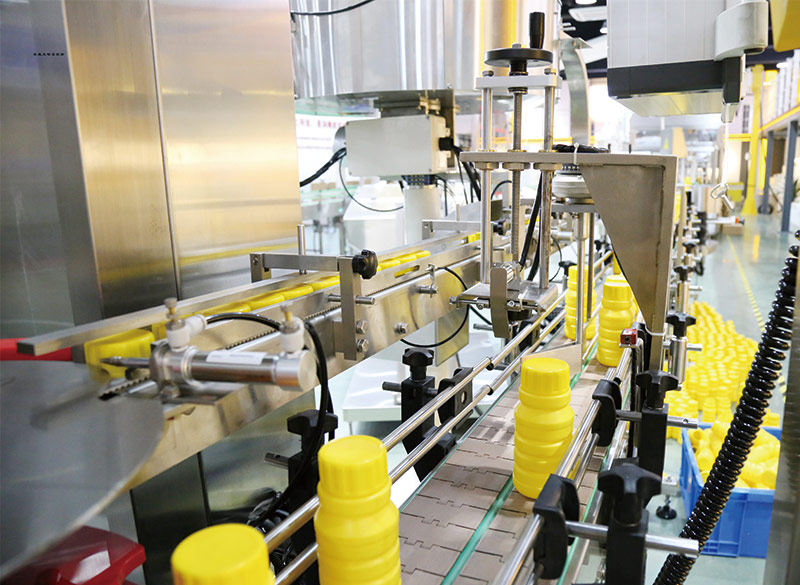

    Machine Photo


    Capping part

    Detection system

    Main lifting part:

    The machine main lifting parts adopts motor-type lifting adjustment, when need to replace the bottle specifications, due to the different bottle height, you only need to operate in the touch screen to achieve height adjustment, and the machine installed upper limit, lower limit photoelectric protection device to ensure that no errors occur;

    Capping part:

    In capping part, each capping head has the function of torque force effect control system, through this device to ensure the effect of capping and to avoid injury (when the cap is screwed, capping head and clutch separately, bottle and cap relatively static, will not hurt bottle and cap).


    Threshold protection: the host is equipped with a safety door threshold alarm device. During normal production, open the safety door (around the door), and the host automatically alarms and stops the machine;


    An oil-water separator is installed in front of the intake main pipe. When the pressure is too high or too low, the host automatically alarms and stops the machine; (All the above alarms are touch screen display and sound and light alarms at the same time)
