800BPH Automatic Capper Machine Single Head Linear 20L

800BPH Single Head Linear PLC Controlled Fully Automatic Capping Machine For 20L Container

Major characteristics:

This machine can finish a series of operations such as bottle-feeling cap-feeding , cap-unscrambling and bottle-outleting . We adopt international advanced modular design concept ,including molds cap-sending , cap-grasping by positioning servo-controlled torque . Non-injury of bottle and caps , high efficiency . No caps , no operating . At the same time , this machine can remove the damaged bottles and non-foiling bottles . It uses advance control technology,touch screen , programmable controllers , servo motor combination , product upgrade quickly . About conditioning , just input the arming angle in the touch screen . Then through the screw lifting mechanism to lift the whole place to complete the specifications . It greatly improves production efficiency and friendlier human-machine combination

Technical Parameter:

Machine details:

This machine includes bottle inlet part, cap feeding part, cap screwing part and bottle outlet part

The pass rate of the screw cap is close to 100%, the torque is adjustable, convenient and fast, and the stability is good. High pass rate:

Good versatility: Adopts correct capping type, suitable to the anti-theft cap and strew caps.

Automatic cap feeding and cap screwing; Button start;

Tool-free quick disconnect for capping heads

Simple structure and easy to maintain

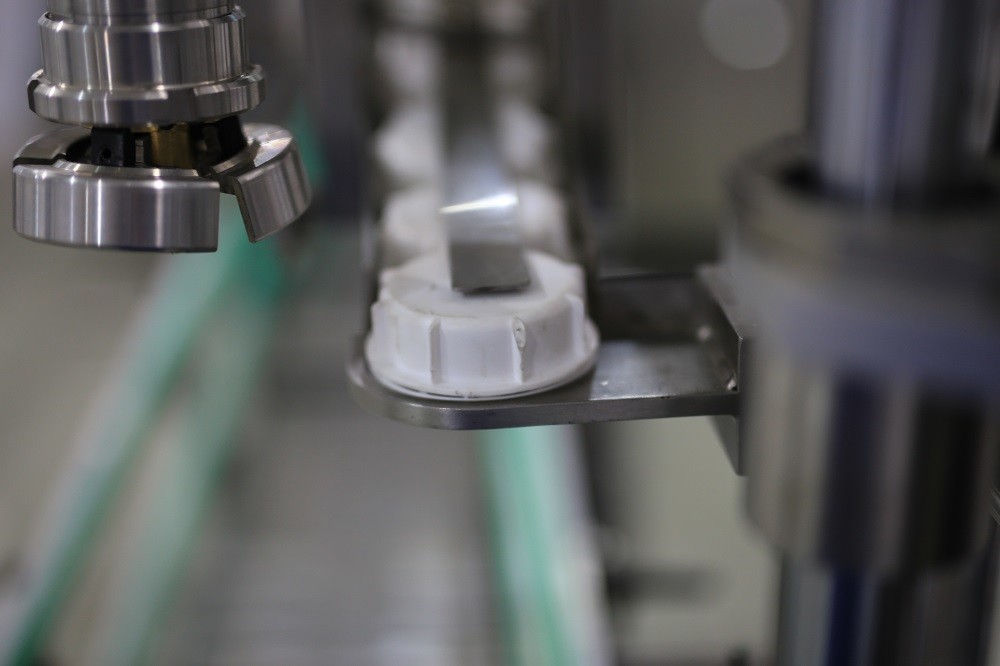

The cap sorter:

The cap sorter can incessantly feed caps to capping machine, match to automatic capping machine.

Protection door:

All doors on the machine are equipped with safety door switches and full range of interlock control. If any door is opened, the machine cannot start or stop automatically

Touch screen:

The support of touch screen adopts 360-degree rotatable bracket, which is easy to operate, simple and generous in appearance, strong in practicability, and gives the operator a kind of enjoyment at one's own will.

Cable trays:

Simple structure, beautiful appearance, flexible configuration and convenient maintenance, so that the cables and air pipes on the site are not messy.

Suitable for contain pictures:

Packaging & Shipping

1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

The goods are all loaded at TOM factory by TOM's logistic department.
