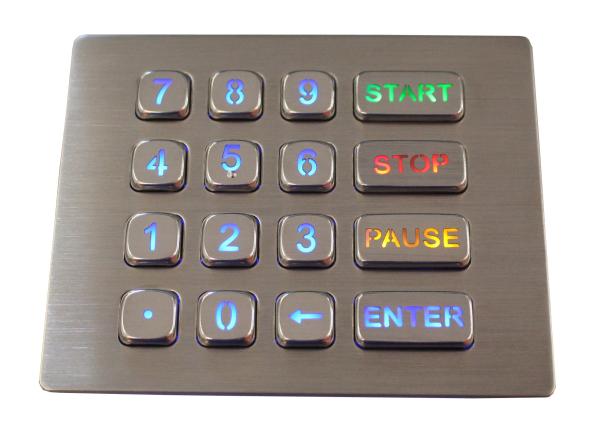

    16 Keys IP67 Panel Mount Keypad Backlit Customized Stainless Steel Keypad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A120KP-BL-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : USD
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    • Product Details
    • Company Profile

    16 Keys IP67 Panel Mount Keypad Backlit Customized Stainless Steel Keypad

    16 Keys IP67 Panel Mount Keypad Backlit Customized Stainless Steel Keypad


    Specifications:

    1.16 keys compact format IP67 dynamic vandal proof Stainless Steel industrial numeric backlit keypad

    2. with fully sealed & ruggedized industrial metal dome PCB with industrial electronics controller shielded and protected by stainless steel housing

    3. industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input

    4.stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included

    5.IP67 dynamic waterproof keypad which good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

    6. Dimension: 120.0mm x 98.0mm (front panel)


    MECHANICAL DATA


    Front plate:Super quality SUS304 brushed stainless steel
    Back plate:Super quality SUS304 stainless steel
    Actuator/Key:16 keys, super quality SUS304 brushed stainless steel
    Key top style:protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
    Key size:14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys
    Switching material:Gold-on-Gold.
    Actuation Force:2.0N+/-0.1N for key 14.0mm x 14.0mm 4.0N+/-0.1N for key 14.0mm x 28.0mm
    Key Travel:0.45mm
    Key life:more than 5 million of operations
    G.W.0.69kg.

    RELIABILITY

    • RoHS Compliant, CE and FCC, ESD
    • Protection Level: IP65 (front panel)
    • Vandal resistant IK10
    • Key Lifespan > 5 million actuations
    • MTBF >50000H
    • MTTR <30min

    ENVIRONMENTAL ADAPTABILITY

    • Operating temperature:-20oC to +60oC
    • Storage temperature: -30oC to +70oC
    • Operating RH: 30-90%
    • Atmospheric pressure: 60-106Kpa.
    • Saline mist: 96 hours, IEC 60512-6
    • Damp heat test at + 40oC: 21 days, IEC 60512-6
    • Dry heat test at + 85oC: 10 days, IEC 60512-6
