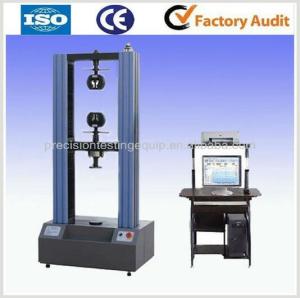

300KN Computer Control Material Inspection Electronic Testing
Equipment
Applications:
Computer Control Electromechanical Testing Machines are designed
and manufactured according to ASTM, ISO, DIN, GB etc standards. It
is suitable for wide range of material for tension, compression,
bending, shearing and low cycle test. With special grips, it can
also do very special test as customer’s request. It is for metal,
rubber, plastic, spring, textile, and components testing. This
machine is servo control mode and the computer with strong function
software does data processing and issues the test reports. The
software based on Windows system is able to make automatic
calculating of test results, i.e. tensile strength; upper / lower
yield strength, Non proportional stress point etc. Report creation
function makes it is very simple to make testing report in needed
format. It is necessary inspect device in the filed of steel and
iron factory, the laboratories of scientific research institutes,
infrastructure construction organs, machinery plants and education
for research and teaching , etc.
Specifications:
| Model | WDW-300 | WDW-200 | WDW-100 | WDW-50 | WDW-20 | WDW-10 |
| Max. Load | 300KN | 200KN | 100KN | 50KN | 20KN | 10KN |
| Load accuracy | ≤±1% |
| Load range | 2%-100% of full scale |
| Test speed | 0.01-250mm/min | 0.01-500mm/min | 0.01-500mm/min |
| Speed accuracy | ≤±1% |
| Displacement resolution | 0.01mm |
| Effective test width | 570mm | 400mm | 400mm |
| Effective tensile space | 600mm | 600 |
| Effective compression space | 700mm | 700mm |
| Dimension | 1130×650×2650mm | 830×550×2000mm | 760×500×1750mm |
| Power supply | 380V, 3ph, 4/3KW | 220V, 1ph, 1.5KW | 220V, 1ph, 1KW |
| Weight | 1800KG | 720KG | 460KG |
| Grips | Wedge type, plate type and other grips as consumer’s demand |
| Load frame type | Table type |
Features:
- High accuracy servo motor to control test speed.
- Ball screw no backlash to guarantee the low noise and high driving
efficiency
- High accuracy load cell to measure the test load
- High accuracy photoelectric encoder to measure the displacement.
- Maxtest software has strong function, it can show test load,
displacement, test speed, test status, and also has the function of
peak load holding, peak displacement holding and self return
original position.
- Thousands of test fixture can be used according to different test
request;
- Compact structure with easy operation.
- Limit switch and setting in the software to guarantee the safety
