WDW-100 100KN Door Type Computerized Electronic Universal Tensile
Testing Machine
Electromechanical Testing Machines are designed and manufactured
according to ASTM, ISO, DIN, GB etc standards. It is suitable for
wide range of material for tension, compression, bending, shearing
and low cycle test. With special grips, it can also do very special
test as customer’s request. It is for metal, rubber, plastic,
spring, textile, and components testing. It is widely used in the
corresponding industries, research and development, test institutes
and training centers etc.
Type of universal testing machine:
1.Electronic universal testing machine
LDS Single Column digital display electronic universal testing
machine
LDW Double Column electronic universal testing machine
WDW WDW-E Floor Type and Door type computer control universal
testing machine
2.Hydraulic Universal testing machine
WE-C Analog dispaly universal testing machine
WAW-E Servo control hydraulic computer universal testing machine
WEW-D Digital Hydraulic universal testing machine
Specifications
| Model | WDW-300 | WDW-200 | WDW-100 | WDW-50 | WDW-20 | WDW-10 |
| Max. Load | 300KN | 200KN | 100KN | 50KN | 20KN | 10KN |
| Load accuracy | ≤±1% |
| Load range | 2%-100% of full scale |
| Test speed | 0.01-250mm/min | 0.01-500mm/min | 0.01-500mm/min |
| Speed accuracy | ≤±1% |
| Displacement resolution | 0.01mm |
| Effective test width | 570mm | 400mm | 400mm |
| Effective tensile space | 600mm | 600 |
| Effective compression space | 700mm | 700mm |
| Dimension | 1130×650×2650mm | 830×550×2000mm | 760×500×1750mm |
| Power supply | 380V, 3ph, 4/3KW | 220V, 1ph, 1.5KW | 220V, 1ph, 1KW |
| Weight | 1800KG | 720KG | 460KG |
| Grips | Wedge type, plate type and other grips as consumer’s demand |
| Load frame type | Table type |
Feature:
1. Complete computer controlled: The whole measuring and
controlling system adopts specific PC control card Used for testing
machines, realizing the data zero and plus adjustment, which has
very high reliability.
2. Supporting multi-transducers Realizing the database management
of the test data which are stored according to the standard format;
Facilitating other software to analyze and transfer.
3. Perfect programming by auto program control, every control mode
can smoothly shift to another one. Fulfilling the test requirement
of all kinds of materials with every test standard home and abroad.

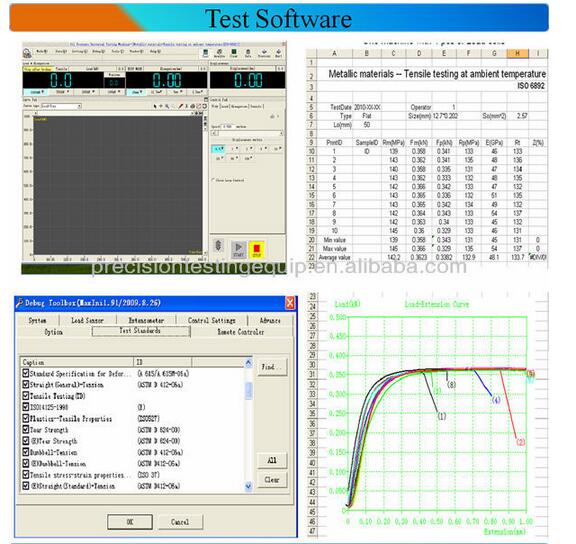

4. Control software has the auto-adjusting function of test
hardness, which assures that the system works with Every kind of
specimen hardness.
5. Perfect graphic function realizing the arbitrarily magnifying,
decreasing, equaling, adding, indicative display and Print of all
kinds of test curves, the test point searching as well as the
simultaneous display and print of several Kinds of test curves.
Data processing supposes self-disposing and input disposing of
graphic human computer Interaction, which facilitates the check and
contrast of the test result.
6. The user can self -define the output of the test report, which
makes the report format have very high flexibility.
7. Modularization design facilitates the software upgrading,
function spreading as well as the second development.
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
