Servo Electric Motor Coil Binding Machine Lacing Both Winding Heads Together

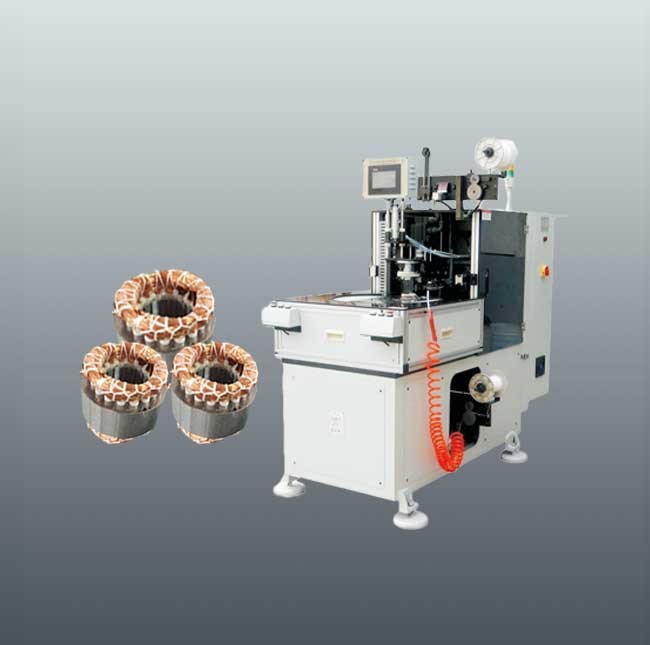

Servo Electric Motor Coil Binding Machine Lacing Both Winding Heads Together SMT - SBZ160


The function of Coil Binding machine is lacing stator coil heads by lace cord, fix stator winding heads and keep in good shape.
It's with double lacing needles and double working stations, having high efficiency and saving labor.
And different lacing patterns can be set accordingly. As it's with turntable, it's suitable to be combined with robots and working together as a member of full-automatic production line.

(1) Main Technical Information

(2) Brief Instruction of Machine

Machine "Servo Electric Motor Coil Binding Machine Lacing Both Winding Heads Together" is used for lacing electrical motor stator coils automatically. It can save labors largely compared with manual. And It can set different lacing patterns, which is more flexible for using and secure.

(3) Main Specifications

1. Loading and unloading system on rotating table;
2. Adopting two needles to lace the stator end turns automatically;
3. Adopting CNC control system to control the servo motors of four spindles;
4. Needle transposition and stator indexing are driven by servo motor;
5. The separated type tooling design and changeover time: ≤15mins;;
6. can detect fault location, with the function of fault diagnosis;
7. Main spindle is driven by servo motor; the speed is adjustable;
8. Lacing mode: lacing slot by slot, interval slot, skip slot or fancy lacing;
9. Equipped with automatic feeding, cutting and mechanical cord tension system;
10. During production, the cord spool is placed on the floor in vertical position;
11. Quick stack height changeover is available by hands;
12. Equipped with safety grating, reset automatically upon signal;
13. Operator works in standing posture;
14. Pressing the button to start the machine by both hands;

(4) Services

We're devoted in R&D and manufacturing equipment for induction motor production, such as Winding machine, Coil Inserting Machine, Lacing Machine and so on.
OUr machines are designed according to customer requirements. For example, machine facade, allocation and mechanism structure,etc. can be specilized if customer has special request. Besides, we can help to arrange the layout of machines of customer site when necessary.
Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to be replaced will be free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.

(5) Production Line Service

With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.
So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
