    Single Strand Simplex Passive CWDM Mux Demux Module For WDM Network CATV System

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-CW-MUX-XXXX
    Certification : CE FCC Rohs
    Price : Negotiable
    • Product Details
    • Company Profile

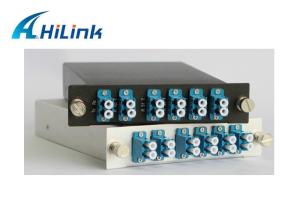

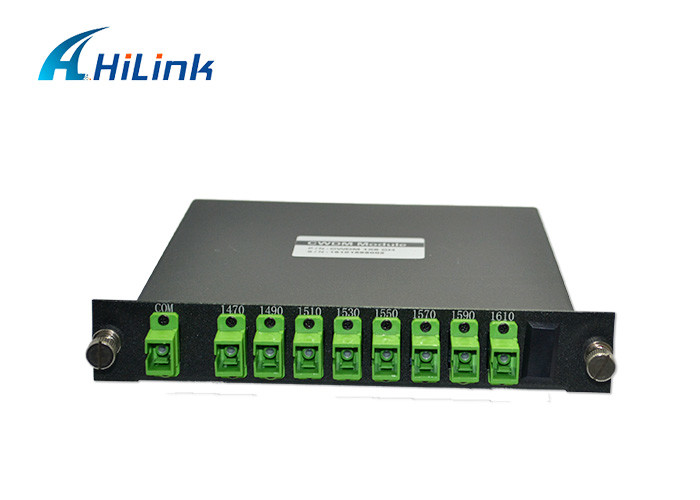

    Single Strand Simplex Passive CWDM Mux Demux Module For WDM Network CATV System

    Single Strand Simplex Passive CWDM Mux Demux Module For WDM Network CATV System


    General

    Hilink CWDM Coarse wavelength division multiplexer---Optic Module Transceiver CWDM 1x16 Mux (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.


    CWDM products include: bare single CWDM device packed in glass tube or stainless steel tube, CWDM Mux Demux modules packed in ABS box up to 16-channel or even 18-channel Multiplexing on a single fiber or CWDM modules packed in standard 19” 1U rackmount. Due to the low insertion loss is needed in WDM networks, we can also add “Skip Component” in big channels CWDM Mux/Demux module to reduce the IL as an option.

    Standard CWDM Mux/Demux package type include: Glass tube, stainless steel tube, ABS box package, LGX pakcage and 19” 1U rack mounted.


    Product Features

    Low Insertion Loss

    High Isolation

    Low PDL

    Compact Design

    Good channel-to-channel uniformity

    Wide Operating Wavelength

    From 1260nm to 1620nm

    Wide Operating Temperature

    From -40°C to 85°C

    High Reliability and Stability


    Applications

    CWDM System

    PON Networks

    CATV Links


    Performance Specifications

    Parameter4 Channel8 Channel18 Channel
    MuxDemuxMuxDemuxMuxDemux
    Channel Wavelength (nm)1270~1610
    Center wavelength Accuracy (nm)±0.5
    Channel Spacing (nm)20
    Channel Passband (@-0.5dB bandwidth (nm)>13
    Insertion Loss (dB)≤1.6≤2.5≤3.0
    Channel Uniformity (dB)≤0.6≤1.0≤1.5
    Channel Ripple (dB)0.3
    Isolation (dB)AdjacentN/A>30N/A>30N/A>30
    Non-adjacentN/A>40N/A>40N/A>40
    Inertion Loss Temperature Sensitivity (dB/°C)<0.005
    Wavelength Temperature Shifting (nm/°C)<0.002
    Polarization Dependent Loss (dB)<0.1
    Polarization Mode Dispersion<0.1
    Directivity (dB)>50
    Return Loss (dB)>45
    Maximum Power Handling (mW)500
    Opterating Temperature (°C)-5~+85
    Storage Temperature (°C)-40~85
    Package dimension (mm)

    L100 x W80 x H10 or L140xW100xH15


    We can provide the CWDM solutions service,with more than 10 years.

    OADM , CWDM +DWDM and WDM CATV EDFA,Monitor function available.

    cwdm mux with cwdm optical transceivers
