    Hilink Single Fiber CWDM Mux Demux Module 9 Channel New Condition With LGX Box

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-CWDM - MUX/DEMUX
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100pcs/week
    • Product Details
    • Company Profile

    Hilink Single Fiber CWDM Mux Demux Module 9 Channel New Condition With LGX Box

    Single Fiber CWDM Module 9CH CWDM mux & Demux with LGX Box


    Future:

    CWDM MUX is based on the use of the wavelength grid as defined by ITU-T G.694

    Low Insertion Loss

    High Isolation

    Low PDL

    Compact Design

    Good channel-to-channel uniformity

    Wide Operating Wavelength:

    From 1260nm to 1620nm

    Wide Operating Temperature:

    From -40°C to 85°C

    High Reliability and Stability


    Application:

    CWDM System

    PON Networks

    CATV Links


    Compliance:

    Telcordia GR-1209-CORE-2001

    Telcordia GR-1221-CORE-1999

    RoHS


    Specifications:

    NCH CWDM Optical Add/Drop Module =CWDM MUX


    Parameters1CH2CH4CH8CH
    Center Wavelength (nm)ITU, ITU+1
    Passband (nm)ITU±6.5
    Operating Wavelength (nm)1460~1620 or 1260~1620
    Channel Space (nm)20
    Fiber TypeSMF-28e or customer specified
    IL(dB) (P/A Grade)Add&Drop Channel0.5/0.60.7/1.01.4/1.72.0/2.5
    Express Channel0.6/0.81.2/1.41.8/2.01.6/2.8
    Isolation(dB)Add&Drop Adjacent Channel30
    Add&Drop Non-Adjacent Channel50
    Express Channel25
    Ripple(dB)0.30.30.40.5
    PDL(dB)0.1
    PMD(ps)0.1
    RL(dB)45
    Directivity(dB)50
    Maximum Optical Power (mw)500
    Operating Temperature (°C)-40~85
    Storage Temperature (°C)-40~85
    BOX Package(mm)100*80*10140*115*18
    LGX Package1U, 2U
    19’’ Rack mount Package1U

    1. Specified without connectors.

    2. Add an additional 0.2dB loss per connector.

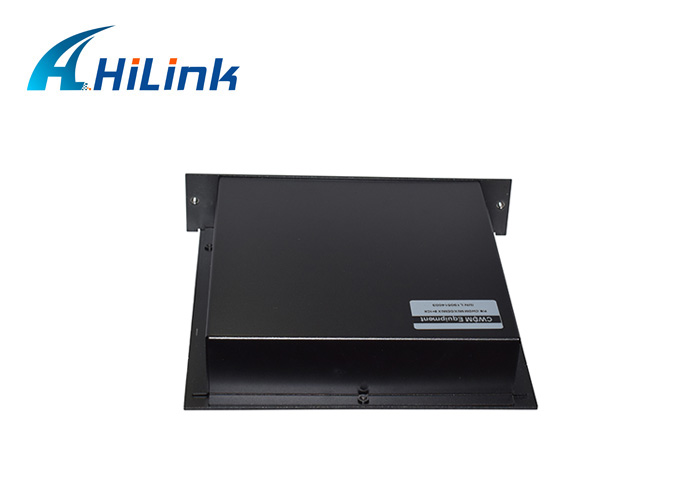

    Photo show:


    Package & Shipping:

    We provide safe and reliable packaging:Plastic box+Carton or by required

    Delivery time:2-5 working days


    Our Services:

    We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, 3COM, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.


    Company Information:



    FAQ:

    1. Q:Do you sell second-hand products?

    A:No.All our products are brand new,we never use second-hand components.


    2. Q:What payment terms do you accept?
    A:T/T,Paypal,Western Union are acceptable.


    3. Q:What are the shipping ways can you offer?
    A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.


    4. Q:Do your products come with warranty?
    A:Yes,We provide 3 years warranty for all our products from the date of shipment.


    5. Q:What devices can your products compatible with?
    A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.


    6. Q:How to place an order?
    A:1>Order details confirmed,please tell us the model and quantity you need.
    2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
    3>Confirm and ship the goods, then tracking number will be sent to you promptly.
    4>We will help to track your goods until you receive them safely.
