15 Times / Min Socket Plug Tester Electrical Load Testing Equipment
With Leakage Protection
corresponding test requirements

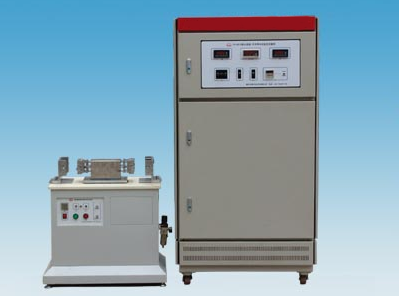

Instrument Description:
The instrument consists of plug and socket mechanical life testing
machine and load test
chamber composition, in line with IEC884-1 and GB2099 corresponding
test requirements.
At the same time through the replacement of the test fixture, can
do switchboard switchboard,
switchboard, nail switch, rocker switch life test. The main
parameters: A) plug and socket
mechanical life testing machine The machine has two kinds of
structural forms: mechanical
transmission structure and pneumatic components structure
1) operating frequency: 15 times / min and 30 times / min.
2) Volume: 700X400X500mm B) Load test box
3) Output voltage: AC: 5 ~ 280V adjustable
4) The output current: 1, the output current: 0.1 ~ 35A adjustable
5) Output power factor: 0.3 ~ 1.0 can be adjusted
6) Voltage, current, power factor meter header measurement
accuracy: 0.5.
7) with leakage protection.
8) Counter range: 1 ~ 999999 can be preset.
9) Weight: 400kg
10) Volume: 900X500X1800mm
