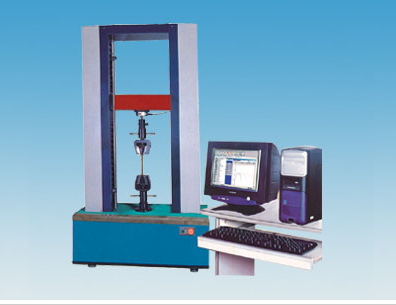

Desktop Universal Material Tester Power Double Column kgf / N / Lbf
Unit Switching
1, the sensor: high-precision load cell (sensor)
2, capacity selection: 500 / 1K / 2K / 10K / 20K / 30K kg
3, unit switching: kgf, N, Lbf
4, effective measurement range (% 100
5, load resolution: 1/120000 full range inside and outside
regardless of file, and resolution
unchanged
6, accuracy grade: 1
7, load accuracy: within ± 1% of the value shown
8, test stroke: 950mm
9, the effective width: 420 / 600mm
10, the displacement resolution: 0.01 / 0.001mm
11, deformation test (extensometer optional): extensometer gauge:
10/25/50/100 optional
12, display: computer system Software and printing function
13, speed range: 0.001 ~ 250mm / min / 0.001 ~ 500mm / min
14, speed input mode: keyboard input
15, safety device: limit protection
16, overload protection: more than 10% of maximum load automatic
protection , Power system:
AC servo motor
17, fixture configuration: according to the user's product
requirements selected fixture a
18, power: AC: 220V ± 10%, 50HZ 5A
19, volume: 82X56X195cm
20, Weight: about 560kg
