Product Name:

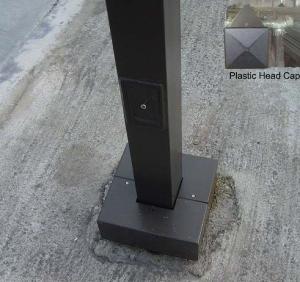

Standard square lighting column.
Design:
All standard square lighting columns are made of 4 inch x 4 inch or
5 inch x 5 inch squares, mostly with material wall thickness 11
Gauge.
Cross-section Shape:
Square.
Material:
Q235/A36 from big material companies in China such as Baosteel,
Ansteel. Q235/A36,minimum yield strength>=235n/mm2; Materials
comply with Australian Standard AS1594, Hot rolled steel flat
products; Australian Standard AS3678, Hot rolled steel plates;
Australian Standard AS3679, Hot rolled steel bars and sections.
Material Tolerance:
Maximum -0.02mm
Surface Treatment:
Polyster powder coated with color RAL 8014 after phosphating;
polyster powder coated after hot dip galvanization; or customized.
Hot-dip galvanization standard : Australian/New Zealand Standard
AS/NZS 4680:1994. Or BS 729 / ISO 1461 ASTM A 123. Or China
standard GB/T:13912-2002
Pole Height:
10ft, 15ft, 20ft, 25ft, 30ft or 35ft.
Welding:
Welding complies with AWS D1.1/D1.1M-2004. Or Australian/New
Zealand Standard AS/NZS 1554.1.2004. Welding of steel structures.
Or BS 5135
Production Process:
Material calibration - grinding and polishing - welding of
baseplate or components - phosphating or hot dip galvanization -
powder coating - packaging.
Quality Control:
Controlled by inspectors for every process.
Certificate:
CE (Acc. To EN40-5: 2002.)
Our lighting poles that sent to Europe are with CE mark.
Packaging:
Packing includes three layers: first layer is foam wrapper; second
layer is thick paper; third layer is fabrics.
Application:
Streets, roadways, highways, squares, parks, etc.
