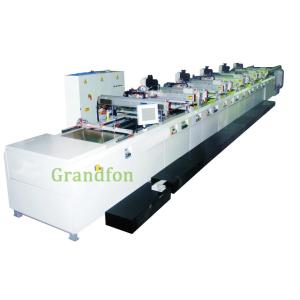

automatic screen printing machine t shirts
Specification / model YZ-DS1536
Max Printing Area(mm) 1500 x 3600
Worktable size(mm) 1700 x 4000
Printing colors 4
Drying method UV
Printing Speed(pcs/hour) 150 - 230
Max screen size(mm) 2010 x 4300
Substrate thickness(mm) 0 – 10
Adjustment for screen frame ±10mm
Air supply 5 – 6 kg/cm2
Features:
1. Automatic multi color screen printing solves the ubiquitous
problem in screen printing industrial with the easy operation
control system, unique working table moving system, unmatchable
vacuum suction system, ensure the substrate stability and precision
during the transportation.
2. This machine make sure of the room efficiently, and put the
printing and drying simultaneous into reality, heavy structure and
distinct new driving transferring system makes the commissioning
easy to liable, modular design can be upgraded when the capacity
updating, to avoid repeatable invest risk.
3. This machine is suitable for multi-color printing on various
substrates, such PET, PVC, self adhesive tap and sticker, ad, POP,
textile, hot transfer paper, hot stamping film, water transfer
paper, etc. To solve the overprinting, different drying methods are
used to adapt to different inks, common inks, het curing inks, and
UV inks.
4. Fully automatic design save lots of labor, working space and
decrease the defective range.
