online screen printing

online screen printing

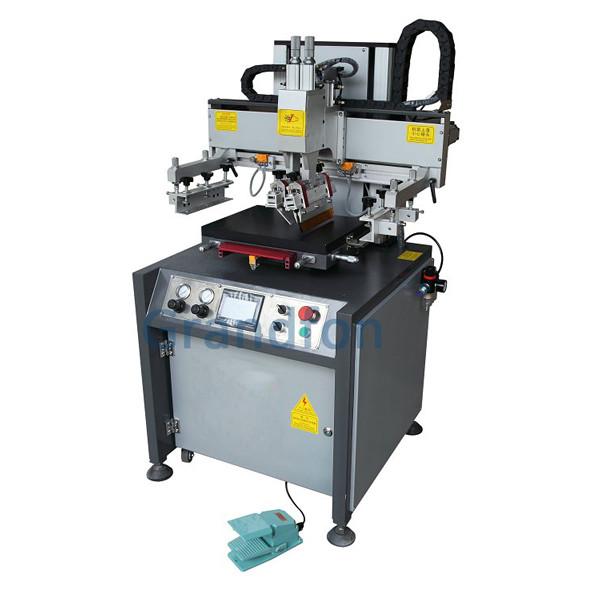

Technical Parameter: YZ-3045P
Workbench area: 400mm*550mm
Max Printing Area: 300mm*450mm
Max Screen Size: 550mm*720mm
Thickness of Material: ≦40mm
Workbench Horizontal Precision: ±0.05
Over color Print Precision: ±0.01
Printing Pressure: 4.0-6.0Kgf/C㎡
Operation Air Pressure:0.3Mpa-0.5Mpa
Source Power: 1.5kw
Rated Voltage: 380V
Printing Speed: 900PCS/Hr
Dimension(L*W*H): 900*750*1570mm
Weight: 300KG

Features:
1. Our silkscreen Printing Transmission adopts motor drive, high precision linear lead rail and synchronous belt drive, movement sensitive, speed equality and can be adjusted for silkscreen printing machine
2.The up and down of machine arm is driven by motor, frequency control, move steady.
3.The printing squeegee and ink-return blade with a air pressure adjusted device and can regulate printing thickness.
4.Vac-sobing to fix printing stocks for silkscreen printing machine
5.With a up and down, left and right, front and back micro-adjustment device very convenient for register. With a safety device ,safe and reliable.
6.ECU centralized control by the microcomputer, easy to operation, flexible and convenient for maintenance for silkscreen printing machine
