    Smart Electric Meters , Plug - In Module Single Phase Electronic Meter

    Ask Lasest Price
    Brand Name : Calin
    Model Number : CA168-C
    Certification : CE//IEC
    Price : Negotiation
    Payment Terms : western Union,Paypal,T/T,L/C
    Supply Ability : 70,000pcs per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Smart Electric Meters , Plug - In Module Single Phase Electronic Meter

    The CA168-C is a cost-effective solution for residential smart electricity metering, seamlessly integrating Calin's advanced metering expertise with high-quality communication technologies. For prepayment operations, it employs both the STS standard and 3DES encryption, ensuring secure transactions.

    The meter features a modular communication unit, with options for PLC, RF, or GSM wireless communication, adaptable to local infrastructure conditions. As part of Calin's comprehensive end-to-end smart metering solutions, the CA168-C meter supports multi-dwelling applications, automatic meter reading (AMR), remote management, load control, and significant cost reduction. It offers flexible on-site and remote configuration capabilities, including emergency unit settings, power limit adjustments, low credit warnings, and repayment control mechanisms.

    Main Features
    • Plug & Play
    • Prepayment and post-payment mode toggle
    • Maximum demand and load profiling record (Optional)
    • Complete revenue protection and anti-tamper features
    • Automatic TOU limit and programmable power limits
    • IEC 62056-21 and DLMS/COSEM compliant
    • Tamper proof, reverse connection, cover open, neutral missing(optional)
    User benefits
    • Build in load switch for onsite and remote disconnection feature
    • Low operational and maintenance cost
    • Reduced non-technical loss
    • Flexible consumer contractual control
    • Easy field installation for improved operation efficiency
    Datasheet
    Nominal voltage Un220/230/240 V
    Limited voltage70%~120%Un
    Nominal frequency fn50-60Hz _+_ 5%
    Basic current(Ib)5-10A
    Maximum current(Imax)60-100A
    Starting current(Ist)20mA
    Active energy constant1000imp/kWh
    Accuracy as Active energy to IEC62053‐21Class1.0
    Power consumption in Voltage circuit<2W <8VA
    Power consumption in current circuit<1VA
    Operating temperature25℃ to+70℃
    Storage temperature40℃ to+85℃
    Insulation level4kV rms for 1min
    Impulse voltage withstand8kV, 1.2/50 μs
    Air discharge16kV
    Immunity to HF fields
    80MHz to 2GHz with load10V/m
    100kHz to 1GHz without load30V/m
    Fast transient burst test4kV
    Meter shell Protection RateIP54(IEC60529)
    Insulation System ClassificationProtective Class II

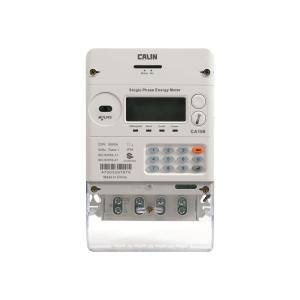

    CA168-C Smart Electric Meter
    CA168-C Smart Electric Meter Installation
