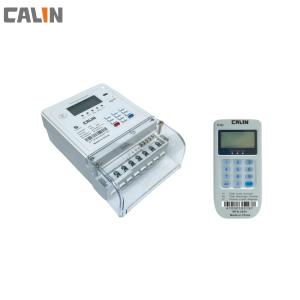

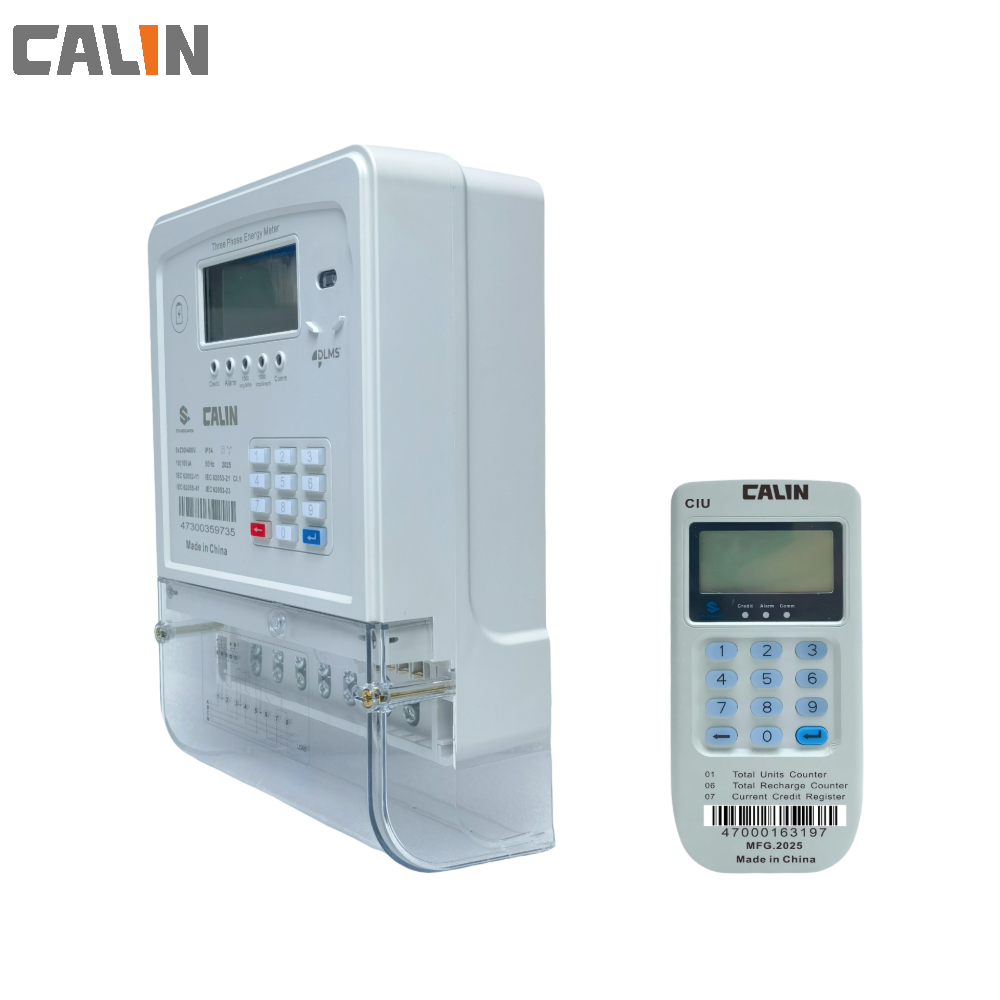

Smart Prepayment Meter Instantaneous Values Industrial Power Meter

The core principle of a smart meter is connectivity, and the CA368- embodies this with its GSM connection to the back-end server system. As a next-generation, three-phase, four-wire prepayment watt-hour meter, it supports a maximum current of 100 amps per phase, making it ideal for light commercial and industrial prepayment applications. In addition to classic metering functions, this meter supports load profile recording across four channels at adjustable intervals. The payment mode can be seamlessly switched between prepayment and postpayment via commands from the back-end server.

Manufactured to ISO 9001 standards, the CA368-G is built to operate reliably in challenging indoor and outdoor environments. It features a wide operating voltage range (Un -40% to +20%) and robust RF immunity (30 V/m). The CA368-G series accurately measures both active and reactive energy. A standard 2400 bps baud rate optical port is included for data interrogation.

The CA368-G's GSM capabilities facilitate two-way communication with the back-end server via local point-to-point GSM/GPRS networks. This design simplifies and accelerates installation. Utilities or service providers can remotely read and collect metering data by scheduling tasks on the back-end server, thus eliminating the need for costly accessories that would otherwise go unused. Specific information can be displayed on the meter by entering designated info codes.

• Real-time measurements: Provides instantaneous data for kW, V, A and PF.
• Flexible installation: Available with direct connection or current transformer (CT) connection.
• Hybrid Payment Mode: Supports both prepayment and post-payment modes, which can be configured remotely.
• Load control: Ability to disconnect the load on demand or when credit is exhausted.
• Robust security: Tamper-proof design includes magnetic immunity, data retention during power failures and detection when the cover is opened.
• Advanced tariffing: Supports multiple rates and billing cycles, including Time of Use (TOU) tariffs.
