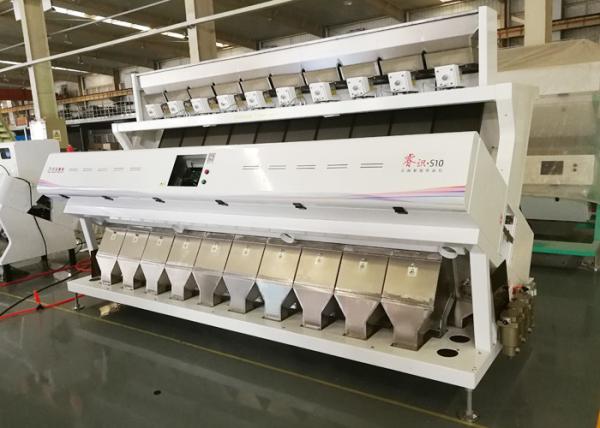

High Definition Groundnut Machine One Channels Peanut Machine
Pine Nut kernel Color Sorter Features:
1. High-Definition and high-sensitivity chromatic CCD image sensor,
together with industrial wide-angle lens for accurate recognition;
2. Adopt the international first-class optical lens; the
articulation up within 0.07 mm2 can recognise a subtle chromatism
and tiny flaws;
3. By using high-speed parallel data processing chip, real-time
efficient image acquisition and processing system, greatly
improving the color separator working efficiency.High quality image
processing algorithm:
4. Adopt international advanced image processing technology, can
effectively identify small to 0.1 mm of tiny impurities, color
choose higher accuracy, color choose than lower brought out;
5. Convenient computer operating system, could save many different
sorting mode for clients in order to suit different materials;
6. Unique LED lighting system, Equipped with LED light source, and
to ensure the high-definition image quality, can meet 1000 kinds of
color separation, identify color changes;
7. Fan self-adaptive working temperature, ensure color separator in
the high temperature environment also can work normally;
8. The incomparable eliminate accuracy, more perfectly sorting out
finished with a defective; high resolution, big material nozzle;
High frequency, long durability and long service life;
9. Easy for clients to install in factory. Unique double layer
belt-type design could finish all the processing procedure at one
time, and only need one elevator.
Technical Parameter
| Model | S1 | S2 | S3 | S4 | S5 | S6 | S7 | S8 | S10 | S12 |
| Capacity(t/h) | 0.8~2.0 | 1.2~2.5 | 1.5~3 | 3~6 | 4~7 | 5~8 | 6~10 | 7~11 | 7~15 | 10~18 |
Voltage (V) | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz |
| Power(KW) | ﹤1.5 | ﹤2 | ﹤2.4 | ﹤2.6 | ﹤3.0 | ﹤3.6 | ﹤4.0 | ﹤4.6 | ﹤5.5 | ﹤7.0 |
Air pressure (Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Dimension (mm) | 910* 1620*1550 | 1220* 1615*1550 | 1628* 1595*2040 | 1870* 1595*2040 | 2210* 1595*2040 | 2528* 1595*2040 | 2836* 1595*2040 | 3152* 1595*2040 | 3910* 1595*2040 | 4594* 1595*2100 |
| Weight (Kg) | 350 | 500 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2250 | 2700 |
Sorting example
Raw material
Accepted for sorting one time
The rejected
Packing & Delivery
Size: 3910*1595*2040mm
Weight:2250(±5%)kg
Packaging Details:The normal package is wooden box(Size: L*W*H). If
export to european countries,the wooden box will be fumigated.If
container is too tigher,we will use pe film for packing or pack it
according to customers special request.
