Anti crawling 358 Security Wire Mesh Fence

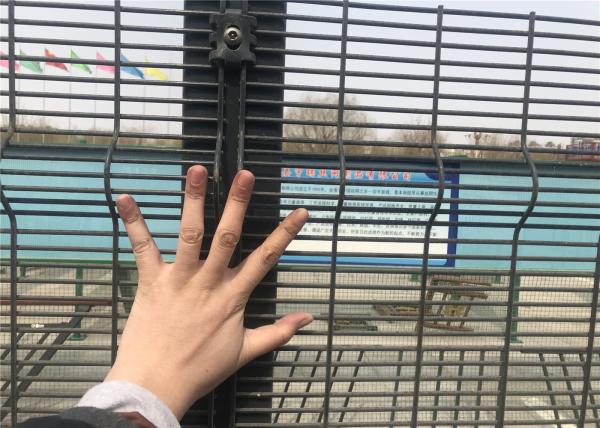

High-security fencing, Prison Mesh Fencing or 358 Mesh Fencing as it is also known, is a highly robust steel Mesh Fencing system. It consists of horizontal and vertical mesh wires which are positioned close together to prevent people from fitting their fingers through the apertures, to ultimately climb the fencing.

Specifications

Panel Description
Mesh size	3"(75mm)*0.5"(12.5mm) resistance welded well at each intersection
Wire diameter	8 gauge(4mm) horizontal wire and vertical wire
Welded strength	Range 540-690N/m2
Surface treatment	hot dipped galvanized steel wire, then PVC powder coating (Min. 100 microns), or PVC powder painting. It provides additional protection and increases the potential life span
Installation	Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts
Post Description
Material	high-grade steel for maximum strength and rigidity
Post section	60×60mm,80×60mm, 80×80mm or 120×60mm
Post plate thickness	2.5mm or 3.0mm
Finish	inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 microns)
Colours	Green RAL 6005, or Black RAL 9005
Post cap	80×60mm and 120×60mm post with metal caps, and 80×80mm post with a plastic cap
Metal clips and clamps are hot dips galvanized then powder coating in green or black colour.

Pictures Show

Founded in 2010, Top Fencing Co.Ltd is an ISO certificated firm located in Hebei District, called the land of the wire mesh. We focused on creating stainless-steel wire mesh and wire mesh fences during the initial functional years. After over ten years of firm history, our firm progressed rapidly from a small company to a contemporary, smoothly running entity with four branch manufacturing facilities and more than 120 staff members. To better suit our primary overseas market, in 2012, we signed up "High-quality Fence" Brands in Hong Kong, primarily in charge of overseas advertising. As well as to the security of modern technology and also brand name, we have obtained a license for Easy Barriers & Portable Fence( Top Cable Mesh) as well as signed up "Top", "Leading Secure fencing", Premium Secure fencing" as trade-mark. We're constantly working to improve our criteria and service to fulfil today's challenges while staying committed to providing premium items and performance. Today Top Fencing offers various services and options in supplying premium wire mesh products for commercial, industrial, and agricultural
