    Clear View Fence

    Ask Lasest Price
    Brand Name : LNF-wiremeshfence.com/buy-358_fence.html
    Model Number : 3.00mm wire 4.00mm wire 12.70mm*76.20mm
    Certification : ISO
    Price : 18.88$ per liner meter
    Payment Terms : TT30% deposit balance 70% at sight of finished products
    Supply Ability : 10000 liner meters
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Clear View Fence

    Clear View Fence Panels Width is 3.297m, Height between 1.8m & 2.4m, Coated Wire Diameter 3.5mm and wire with aperture size (centers) @ 76.2mm x 12.7mm. Our clear view fencing panels also available following specifications

    Fence height mPanel size (Height × Width)Fence Post (Height × Size × Thick )Clamp Bar (Height × Width × Thick )Inter or corner Clamp No (PCS)
    2.02007mm ×2515mm2700mm ×60×60×2.5mm2007mm ×60mm ×5.00mm7 or 14
    2.42400mm × 2515mm3100mm×60×60×2.5mm2400mm ×60mm ×5.00mm9 or 18
    3.02997mm ×2515mm3800mm×80×80×2.5mm2997mm ×80mm ×6.00mm11 or 22
    3.33302mm ×2515mm4200mm×80×80×2.5mm3302mm ×80mm ×6.00mm12 or 24
    3.63607mm ×2515mm4500mm×100×60×3.0mm3607mm×100mm×7.00mm13 or 26
    3.63607mm ×2515mm4500mm×100×100×3.0mm3607mm×100mm×7.00mm13 or 26
    4.24204mm × 2515mm5200mm ×100 ×100 × 4.0mm4204mm ×100mm × 8.00mm15 or 30
    4.54496mm × 2515mm5500mm × 100 ×100 × 5.0mm4496mm × 100mm ×8.00mm16 or 32
    5.25207mm ×2515mm6200mm×120×120×5.0mm5207mm×100mm×8.00mm18 or 36.

    Feature

    • Clear View Fence Panels Formation; Panel reinforced with 4 x 50mm deep V formation horizontal recessed bands (rigidity).2 x 75mm 70 flanges along sides (internal fixtures & anti-vandal) (allowing for flush post and panel finish, 48 line wire secure connection, Locking Recess mechanism) and 2 x 30 flanges along top and toe (arrow-straight edges, intergraded angle).
    • Posts; The post shall be 2.4m long. Taper Post. Post width shall be 85mm - tapering to 45mm with a depth of 85mm. The post shall include ‘Locking Recess Mechanism’ to secure the panel edge. The post shall be sealed with a UV stabilized polymer cap and fitted with a 12mm base pin.
    • Post Foundation;600mm deep X 400mm square 50 Mpa concrete.
    • Applications Wire Mesh Fences are widely used for gardens fence, factories, roads, airports, greenbelt, harbor greenbelt, etc.

    Specification clear view fence panels

    Design-1Specification
    Clear View Fence PanelsSurface treatment: Hot dipped galvanized and then powder coated. Or hot dipped galvanized after welded.2.1m high, 2.5m wide horizontal wire:4mmVertical wire: 3mmMesh opening:76.2x12.7mmFence post:40x80x2mm,2.8m long with caps and metal clamps

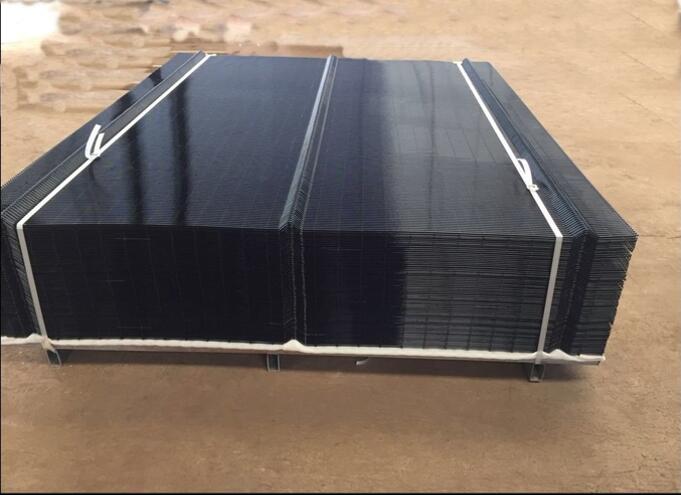

    Powder Coated Clear View Fence Panels

    clear view fence panels for sale

    Quality Clear View Fence for sale
