    DC24V Digital Scale Indicator Controller With Target Batch Count Control

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST106-B68[U]
    Certification : CE
    Price : negotiation
    Payment Terms : Western Union, T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3workdays
    • Product Details
    • Company Profile

    DC24V Digital Scale Indicator Controller With Target Batch Count Control

    Ration Batching Controller For Ration Batching Scale with 4-material , Precies Feeding Control Digital Scale Indicator


    Main Application:

    4-Material Ration Batching Scale


    Main Features:

    1:32-bit ARM CPU with 48MHz clock and high arithmetic speed.

    2: Auto Zero Tracking

    3: Fall Value Auto Correction

    4: Target Batch Count Control

    5: Auto Pause for Gross Weight Upper Limit and Deviation Alarm

    6: Increment/Loss-in-weight Ration Feeding

    7: Loss-in-weight Ration Dumping

    8: Ant-Vibration Digital Filter

    9:2- speed[high/low] Precise Feeding Control by DOs and AOs


    Technical Specifications:

    Power SupplyDC24V±20%
    Display6+8 Red Led Digital Tubes for English and Digit Display
    Sampling Frequency400Hz
    A/D Convert24-bit
    Keypad4 keys for Menu&Shortcut mode operation with key tone
    Excitation Voltage Output of LoadcellDC9V
    Max. Connection number of Loadcell4 Loadcells (350Ω)
    DI6 Normally Open Switch Inputs
    DO8 Normally Open Transistor Switch Outputs
    AO1 Optional and Definable Analog Signal Output: 4~20mA.
    Communication PortCOM1:RS232, COM2:RS485
    Outline Dimension110 × 62 × 150 mm (W×H×D)
    Net WeightApprox. 1kg
    IP GradeIP65

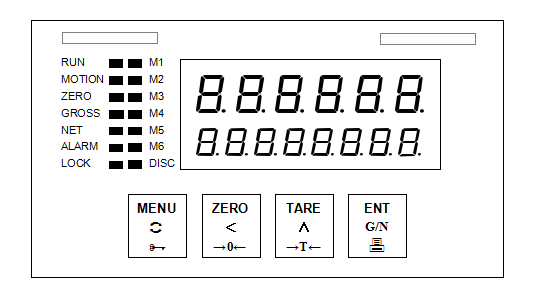

    Model Panel-mounting Operation Interface:

    Installation:

    System Diagram for M1~M4 Ration Batching System​:


    Package:
