    Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST106-B60S[C]
    Certification : CE
    Price : negotiation
    Payment Terms : Western Union, T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 3workdays
    • Product Details
    • Company Profile

    Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection

    Mini Crane Overload Protection Controller Digital Scale Indicator With 4 to 20 Am

    Main Application:
    Crane[Wheel Crane, Travelling Crane,Frame Crane,Bridge Crane and so on] Overloade PRotection
    Sound-light Pre-alarm for Weight Hight Limit
    Delay-stop for Weight Higher Limit
    Emergency-stop for Weight Highest Limit

    Main Features:
    1:32-bit ARM CPU with 48MHz clock and high arithmetic speed.
    2: Auto Zero Tracking
    3: Load Calibration & Data Calibration
    4: Definable AO/COM[Communication Port]

    Technical Specifications:

    Power SupplyAC24V±20%
    Display5 Red Led Digital Tubes for English&Digit Display
    Sampling Frequency640Hz
    A/D Convert24-bit
    Keypad4 keys for Shortcut mode operation with key tone
    Excitation Voltage Output of LoadcellDC12V
    Max. Connection number of Loadcell8 Loadcells (350Ω)
    [mV]Signal Input Range0-19.5mV
    DO2 Normally Open/Closed Relays:AC250V/DC24v,1A
    AO1Analog Signal Output: 4~20mA.
    Communication PortCOM1:RS232;COM2:RS485
    Outline Dimension107 × 60 × 100 mm (W×H×D)
    Net WeightApprox. 1.2kg
    IP GradeIP65
    Verfication Accuracy0.03%
    Static Weighing/Force Measuring Accuracy0.2%∼0.5%

    Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.

    Menu Operation
    Key NameDescription
    【■】Enter Main Menu / Exit.
    8Enter / Save / Alarm Acknowledge.
    【►】

    Cursor shifts right.
    Display the previous option.

    【▲】

    Display the next interface or option.
    Digit input: +1 ( 0~9 loop).


    Quick Operation
    Key NameDescription
    【■】*

    * Keep the key pressed for 2 seconds:

    • Key-locking.
    • Key-unlocking.

    【►】
    (【SET】)

    Setpoint parameters setting.

    【▲】
    (【→0←】)
    (【ZERO】)

    • [≡ZEro]: Zero Fine Adjustment without Power-down Protection. If the LED light [NZ] turns on, the operation will be invalid.
    • [-ZEro]: Zero Calibration with Power-down Protection.


    Mini Crane Overload Protection Controller Digital Scale Indicator with 4 to 20 Am

    • Sound-light Pre-alarm for Weight High Limit
    • Delay-stop for Weight Higher Limit
    • Emergency-stop for Weight Highest Limit

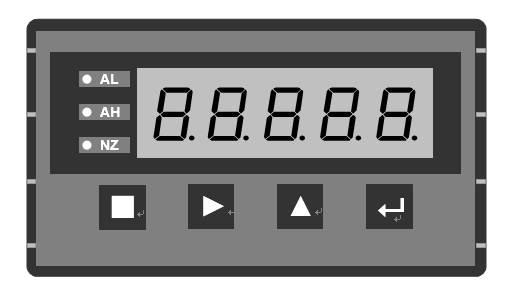

    Operation Interface Diagram:

    Installation:


    Package:
