Brand Name : | Chuangyin |
Model Number : | CYSCDJ-15/630 |
Certification : | Test Report |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 36,000,00pcs per year |
Delivery Time : | Within 7 days |
15kV Indoor Busbar Connection System Type MV For The Busbar System
1.Description:

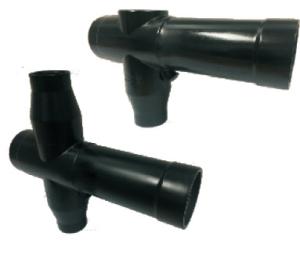

Top busbar system, widely applicable for SF6 metal clad switchgear
connection system, mainly consists of (long) T connector, (long)
cross connector, right angel four-way connector, extended bushing,
shielded busbar to get full-insulated, full-shielded, full-sealed
junction and fully avoid HT exposed deadly defaults while easily
installation and high reliability.
Product interface conforms with standard EN50180-50181,C type
bushing design.
Standard: IEC 60502.4, GB/T 12706.4
2. Parameters :
Item | Parameters |
Voltage Class | 15 kV |
Rated Current | 630 A |
AC Withstand Voltage 1 min | 42 kV |
Partial Discharge | 15 kV, ≤10 pC |
BIL | 75 kV |
Screen Resistance | ≤ 5000Ω |
![]() |
