    Cable Accessories Connector Bus Bar For Medium Voltage And Low Voltage Connection

    Ask Lasest Price
    Brand Name : CY-Group
    Model Number : CYSSJ-15/630
    Certification : KEMA CE ISO SGS TUV UC3
    Price : NEGOTIABLE
    Payment Terms : L/C, TT,D/A,D/P
    Supply Ability : 6000000pcs/year
    Delivery Time : 3-8 days
    • Product Details
    • Company Profile

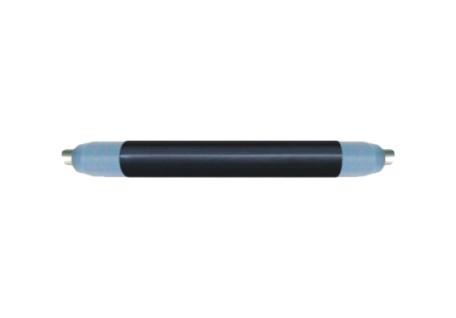

    Cable Accessories Connector Bus Bar For Medium Voltage And Low Voltage Connection

    Cable Accessories Connector Bus-bar for Medium Voltage and Low Voltage connection


    Bus-bar Connector

    Application

    Chuangyin® Bus-bar Connector is widely applicable for the combined connection of ring main units (RMU), gas insulated switchgear (GIS) to supply more branches for expansion, which electrically insulate and mechanically seal the connecting busbar and switchgear.

    The interface designed to comply with EN 50180 / EN 50181 interface type C and HD 629.1, IEC 60502.4, GB/T 12706.4 etc.


    Features

    Made screened or unscreened

    Compact design

    100% factory tested

    In compliance with EN 50180 / EN 50181 interface type C


    Note: The length will follow customers requirement.

    1. Probe

    2. Insulating Layer

    3. Semi-conducting Shield

    4. Bus-bar

    Technical Data

    ItemParameters
    Voltage Class15 kV35 kV
    Rated Current630 A1250 A
    AC Withstand Voltage 1 min42 kV117 kV
    Partial Discharge15 kV, ≤10 pC45 kV, ≤10 pC
    BIL75 kV200 kV
    Screen Resistance≤ 5000Ω≤ 5000Ω
    Interface TypeC
