Smart Process Calibrator Multimeter , Multifunctional Documenting Process Calibrator

    Buy cheap Smart Process Calibrator Multimeter , Multifunctional Documenting Process Calibrator from wholesalers

    Buy cheap Smart Process Calibrator Multimeter , Multifunctional Documenting Process Calibrator from wholesalers
    • Buy cheap Smart Process Calibrator Multimeter , Multifunctional Documenting Process Calibrator from wholesalers
    • Buy cheap Smart Process Calibrator Multimeter , Multifunctional Documenting Process Calibrator from wholesalers

    Smart Process Calibrator Multimeter , Multifunctional Documenting Process Calibrator

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM7221
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Smart Process Calibrator Multimeter , Multifunctional Documenting Process Calibrator

    Hand - Held Smart Process Calibrator With Voltage / MA Calibrator And Loop Power


    Features of Multifunction Process Calibrator


    • Auto shutdown
    • DC voltage measurement
    • DC voltage output
    • DC measurement (milliampere)
    • DC measurement (milliampere) with loop power supply
    • DC output (milliampere) with loop power supply
    • DC (milliampere) analog output with analog output current

    SpecificationsRangeAccuracy
    mv Measurement (INPUT)0~100mV±(0.02%+2)
    mv Source (OUTPUT)0~100mV±(0.02%+2)
    v Measurement (INPUT)0~10V±(0.02%+2)
    v Source (OUTPUT)0~10V±(0.02%+2)
    mA Measure0~24mA (-25%~125%)±(0.015%+4)
    mA Source0~24mA (-25%~125%)±(0.015%+4)
    Loop Power24VDC±10%
    Accessibility
    Overload protection: 250mA, 250V fast-acting fuse
    Over-voltage protection
    Auto power off: 5 minutes
    General
    Power Supply4*1.5V AA Batteries
    Size194mm*94mm*54mm
    Net weight344g
    Gross weight725g
    Safety RatingEN61010-1, EN61326-1

    Product Description of Multifunction Process Calibrator


    Voltage current signal source (Volt/mA Calibrator)is a Volt/mA source and measuring tool used in tests on 0-24 Milliampere current circuit and 10V DC voltage. This calibrator can not be used for measurement and output simultaneously.The calibrator can provide current output in accordance with Milliampere value or percentage displayed. Percentage range is from -25.00% to 125.00%. 0% corresponds to 4 Milliampere and 100% to 20 Milliampere. In the current source mode, the calibrator provide current, in the analog mode ,the calibrator simulates a group of two-wire transmitters using external current loop.


    • The maximum voltage imposed between any input terminal and the ground or between two input terminals 30V.
    • Storage temperature:-40℃ to 60℃, Operating temperature:-10℃ to 55℃.
    • Relatively humidity: 95%( up to 30℃), 75%( up to 40℃), 45%( up to 50℃), 35%( up to 55℃)

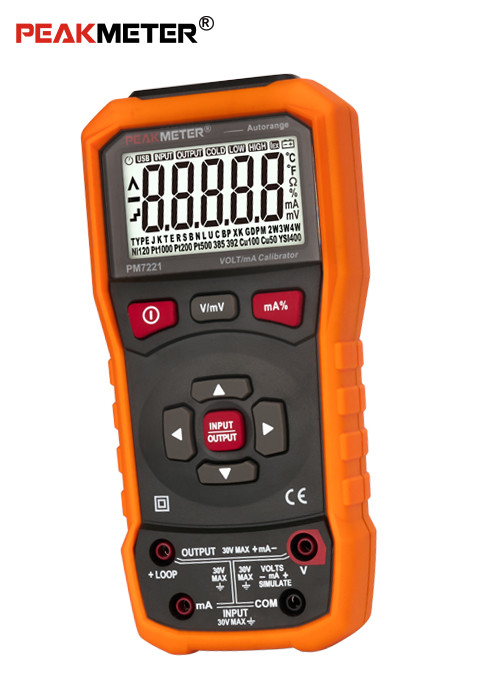

    Detailed Images of Multifunction Process Calibrator


    Our Target


    We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.


    R&D Team


    Our R&D team have over 20 years R&D experience in instrument industry .


    Mission


    Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
