    Digital Process Calibrator Loop Power INPIT V Calibration And Measurement

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM7221
    Delivery Time : 5-40 work days
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Price : Negotiation
    • Product Details
    • Company Profile

    Digital Process Calibrator Loop Power INPIT V Calibration And Measurement

    Digital Process Calibrator Loop Power INPIT V Calibration And Measurement


    Features of Digital Process Calibrator


    • Auto shutdown
    • DC voltage measurement
    • DC voltage output
    • DC measurement (milliampere)
    • DC measurement (milliampere) with loop power supply
    • DC output (milliampere) with loop power supply
    • DC (milliampere) analog output with analog output current

    SpecificationsRangeAccuracy
    mv Measurement (INPUT)0~100mV±(0.02%+2)
    mv Source (OUTPUT)0~100mV±(0.02%+2)
    v Measurement (INPUT)0~10V±(0.02%+2)
    v Source (OUTPUT)0~10V±(0.02%+2)
    mA Measure0~24mA (-25%~125%)±(0.015%+4)
    mA Source0~24mA (-25%~125%)±(0.015%+4)
    Loop Power24VDC±10%
    Accessibility
    Overload protection: 250mA, 250V fast-acting fuse
    Over-voltage protection
    Auto power off: 5 minutes
    General
    Power Supply4*1.5V AA Batteries
    Size194mm*94mm*54mm
    Net weight344g
    Gross weight725g
    Safety RatingEN61010-1, EN61326-1

    Product Description of Digital Process Calibrator


    Voltage current signal source (PM7221)is a Volt/mA source and measuring tool used in tests on 0-24 Milliampere current circuit and 10V DC voltage. This calibrator can not be used for measurement and output simultaneously. The calibrator can provide current output in accordance with Milliampere value or percentage displayed. The maximum voltage imposed between any input terminal and the ground or between two input terminals 30V. Storage temperature:-40℃ to 60. When the meter is left idle for five minutes, the meter will automatically be shut down to extend the batteries’ service life.


    • The calibrator can provide current output in accordance with Milliampere value or percentage displayed.
    • Percentage range is from -25.00% to 125.00%.
    • The maximum voltage imposed between any input terminal and the ground or between two input terminals 30V.
    • Storage temperature:-40℃ to 60℃, Operating temperature:-10℃ to 55℃.
    • Relatively humidity: 95%( up to 30℃), 75%( up to 40℃), 45%( up to 50℃), 35%( up to 55℃)

    Services


    • All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface) , and delivery fee will be borne by customer.
    • Material and service fee will be charged when warranty is expired, and delivery fee will be charged .
    • To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs .
    • Customer can refer the maintenance order to get more information .

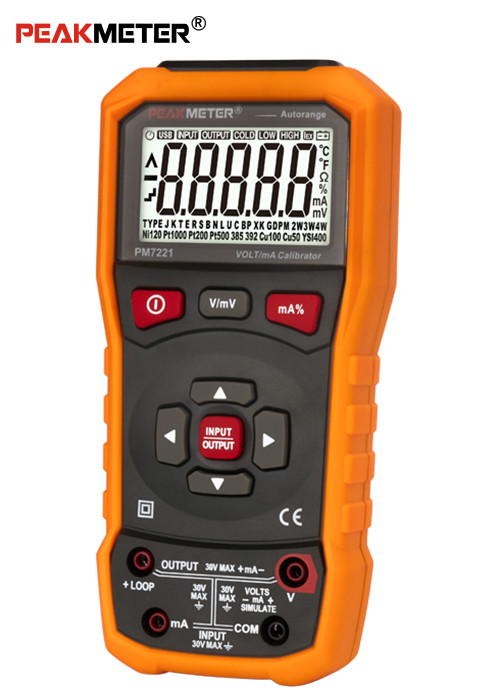

    Detailed Images of Digital Process Calibrator
