304 Stainless Steel Filter Housing / Single Bag Filter Housing With Filter Bag

Ask Lasest Price
Brand Name :	UPK
Model Number :	U-SS009
Certification :	CE
Price :	Negotiation
Payment Terms :	L/C, T/T, PAYPAL
Supply Ability :	200 PCS PER MONTH
Delivery Time :	20-30DAYS

Add to Cart

Product Details
Company Profile

304 Stainless Steel Filter Housing / Single Bag Filter Housing With Filter Bag

304 Single filter bag style stainless steel filter housing with 2 # filter bag

Description

Bag filter housing designed in UPK are devided into two types: 1, Jack-in Type, 2, Side-in Type, Both with fined design, without leaking posibility. Standard 1-4# filter bag with PE PP Nylon, SS can be suitable to the filter housings.

Specification

Flow Rate	25-1200m³/h
Min. Working Pressure	0.1Mpa
Max. Working Pressure	1.0Mpa / 1.6Mpa / 2.5Mpa
Pressure Loss ( In Washing )	0.01Mpa
Max. Working Water Temp.	70℃
Filtration Precision	50-3500micron
Automatic Washing Time	60 seconds (Adjustable)
Auto Washing Control	Differencitial, time and automatic
Voltage	220V
Operation Rated Voltage	220V 380V 50HZ

Features & Benefits

1, Wildly used in filtration, all coarse, medium, fine filtration can meet
2, Simple structure, long service life
3, Laser hole drilling, electrolic polishing of the filtering net, without any attachment material

Model Slection

Model	φ	Qty of Bag	Filtration Area	Inlet & Outlet	M³/H	Mpa	Temp.
UBF01-1#	200	1	0.25sqm	DN50	20	0.6-1.6	210
UBF01-2#	200	1	0.5sqm	DN50	40	0.6-1.6	210
UBF01-4#	133	1	0.1sqm	DN25	10	0.6-1.6	210

Product Tags:

ss bag filter housing

stainless steel cartridge filter housing

304 Stainless Steel Filter Housing / Single Bag Filter Housing With Filter Bag

High Flow Industrial Filter Housing Vertical / Horizontal With Sandblast Surface

Luxury Wall Mounted Stainless Steel Water Filter Housing 304 316 For Home

304 Stainless Steel Housing Filter For Factory / Household Water System Protection

T Shape SS Filter Housing / 20 Inch Cartridge Filter Housing With Sanitary Grade

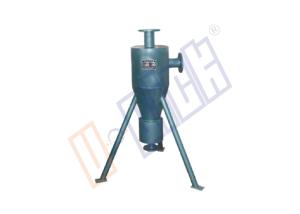

Desander / Particle Removal Stainless Steel Filter Housing CE Approved
