304 316 shallow medium quartz sands filter stainless steel filter
housing
Description

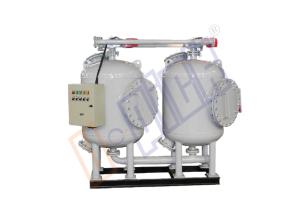

UPK-AGF Shallow medium filter housing is our latest product, its
almost round shell and special inner design assure steady flow in
filtration, to reach ideal filtration effectiveness, and numberless
inner circulating current formed during back-flushing with its high
effectiveness, compare to normal quartz sand filter, DMF quartz
sand filter housing has many advantages such as automatic
filtration and back-flushing, less sands needed, less outlet water.
Specification
Many filtration media is optional for the filter housing, but
mainly we use quartz sands, according to filtration requirement,
here we suggest two types of quartz sands with different accuracy
for using.
| Filtration | Bottom Sands | Upper Sands | Flow Rate | FR/Back-flushing |
| Normal | 1.2-2.0mm | 1.2-2.0mm | 40-50m3/h | 35-55m3/h |
| Refined | 1.2-2.0mm | 0.5-0.8mm | 15-25m3/h | 25-40m3/h |
Commonly used filtering system combination
| Unit | Model | Size | Sq.m | T/H-n | T/H-r | KG | KG-sand |
| 1 | U-AGF-1 | 1.22×1.22×2 | 1.16 | 40-50 | 15-25 | 120 | 860 |
| 2 | U-AGF-2 | 2.64×1.22×2 | 2.32 | 80-100 | 30-50 | 240 | 1750 |
| 3 | U-AGF-3 | 3.96×1.22×2 | 3.48 | 120-150 | 45-75 | 360 | 2580 |
| 4 | U-AGF-4 | 5.28×1.22×2 | 4.64 | 160-200 | 60-100 | 480 | 3440 |
| 5 | U-AGF-5 | 6.95×1.22×2 | 5.80 | 200-250 | 75-125 | 600 | 4300 |
| 6 | U-AGF-6 | 8.32×1.22×2 | 6.96 | 240-300 | 75-125 | 720 | 5160 |
Application
1, Water filtration
2, Cooling circulating water, swimming pool water
3, Sea water filtration
4, Waste water filtration
Feature & Benefits
1, Quick-installation, without any erecting equipment needed
2, Small floor space design
3, Anticorrosive design with PE coating inside
4, Well-distributed water avoid sands moving
