    High Performance Flat Touch Screen Monitor , Industrial Touch Panel Computer

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD12PMT5X31W
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

    High Performance Flat Touch Screen Monitor , Industrial Touch Panel Computer

    16:9 wide screen 12.1 inch industrial flat bezel panel mount PCAP multi touch screen monitor display with IP65 front


    ITD’s PCAP Multi-Touch Panel mount LCD monitors come standard with an environmentally sealed NEMA 4 front panel that is resistant to dust/dirt penetration or even liquid splashes. It’s true flat surface design with easy-to-clean. The industrial PCT multi-touch screen monitor is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology (PCT or PCAP), in an industrial-grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays. ITD industrial multi-touch flat panel displays are designed for factory automation, pharmaceutical operator interface, process control, and other harsh computing environments.


    BENEFITES

    - Sealed Front Panel Design to NEMA 4/IP65

    - Multi-Touch (PCT / PCAP) Touchscreen

    - Rugged aluminum front bezel and aluminum alloy back chassis

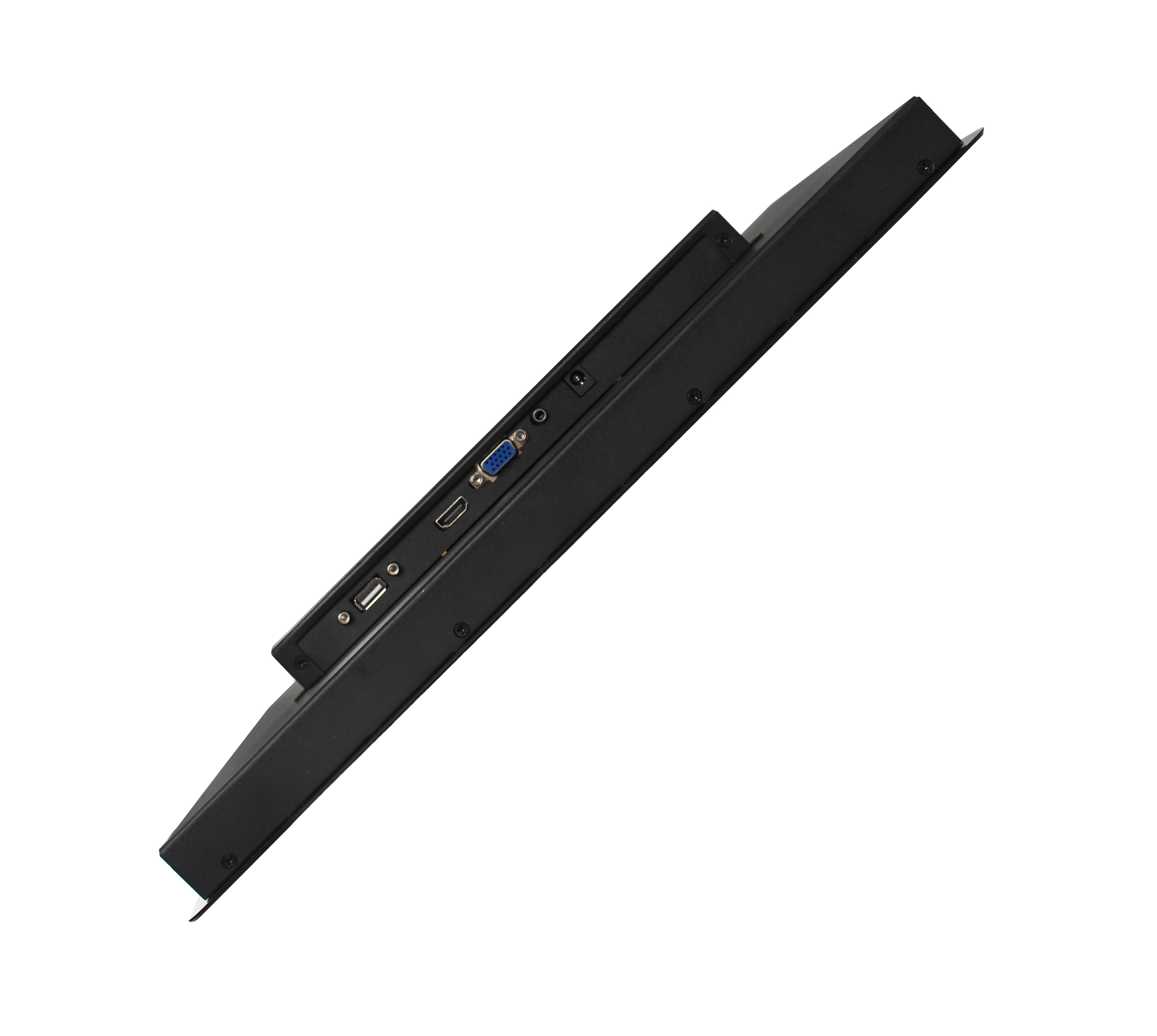

    - VGA/HDMI/DVI video connectors

    - Easy to Service & Maintain in the field

    - LED Backlight with 50000h


    Flat Bezel Panel Mount LCD Monitor


    Model NameITD12PMN1X31W
    IP RatingN/A

    LCD Panel


    Screen Diagonal (Inch)12.1”
    Display Active Screen Size (cm)261.12(H)×163.2(V)
    Aspect Ratio16:10
    Physical Resolution1280×800
    Maximum Resolution Supported1920×1200
    Colors262K
    Brightness (cd/m²)300
    Contrast Ratio800:1
    View Angels80/80/80/80
    Backlight/Backlight LifetimeLED Backlight with 50000Hours’Lifetime

    Touch Panel


    Touch OptionsResistive, PCAP
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Input / Output


    Video Input1 × VGA
    1 × DVI-I
    1 × HDMI
    Audio1 × PC-Audio
    Touch Connector1 × USB
    Power Connector1 × DC2.0

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption21.9W

    Order Information


    12.1”16:10 Panel Mount LCD Monitor with Resistive TouchITD12PMT1X31W
    12.1”16:10 Panel Mount LCD Monitor with PCAP TouchITD12PMT5X31W
    12.1”16: 10 Panel Mount LCD Monitor with Tempered GlassITD12PMG1X31W


    APPLICATION

    OUR FACTORY
