43" Pure Flat LCD Industrial Touch Screen Monitor IP65 NEMA 4 Capacitive Touch Screen

    Buy cheap 43

    Buy cheap 43
    • Buy cheap 43
    • Buy cheap 43

    43" Pure Flat LCD Industrial Touch Screen Monitor IP65 NEMA 4 Capacitive Touch Screen

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD43OFT5K1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-7 Business Days
    • Product Details
    • Company Profile

    43" Pure Flat LCD Industrial Touch Screen Monitor IP65 NEMA 4 Capacitive Touch Screen

    43" pure flat lcd panel IP65 NEMA 4 capacitive touch screen industrial monitor


    SPECIFICATIONS


    2. 1 General

    ModelITD43OFT5K1
    IPIP65(for front panel only)
    Outline DimensionsWidth: 997mm Height: 590mm Depth: 58mm
    Weight(N.W/G.W)26.29Kg / 35.23Kg (Approx.)
    Packing Dimension1145(W) ×710(H)×190(D)mm
    Speakers8Ω10W
    LCD Type43” Active matrix TFT-LCD
    Video InputVGA and DVI-I, HDMI, Audio
    Recommend Resolution1920×1080@60Hz,75Hz
    OSD controlsAllow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power SupplyType: Internal Power Supply
    Input (line) Voltage: 100-240 VAC
    Output Voltage/Current: 12V
    Power Consumption85W
    Mount Interface

    1)VESA 400mm×300mm

    2)Side Mounting Brackets

    Regular Warranty1 Year for TFT Panel and 2 Years for Others
    Agency ApprovalFCC,CE,RoHS Certified

    2. 2 LCD Specification

    Active Area(mm)941.184(H) x 529.416(V)
    Resolution1920×1080
    Dot Pitch(mm)0.4902×0.4902
    Nominal Input Voltage VDD+12V(Typ)
    Viewing angle (L/R/T/B)89°/89°/89°/89°
    Contrast1200:1
    Luminance(cd/m2)400
    Response Time(Rising/Falling)8ms
    Support Color16.7M
    Screen Scanning60Hz
    Backlight MTBF(hr)50000h

    2.3 Touch Screen Specification

    TypeProjected Capacitive Touch Screen
    Resolution4096×4096
    Light Transmission85%±5%
    Touch Life Cycle50 millions times
    Touch Response time5ms
    Touch System InterfaceUSB A type
    Operating Temperature-10~60°C
    Operating System Support

    Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

    Drivers for Windows CE/XP, Android


    2.4 Internal Power Supply

    Input100-240 VAC, 50-60 Hz
    MTBF50000 hr at 25°C

    2.5 Environment

    Operating Temp.-10~50°C
    Storage Temp.-10~60°C
    Operating RH:20%~80%
    Storage RH:10%~90%

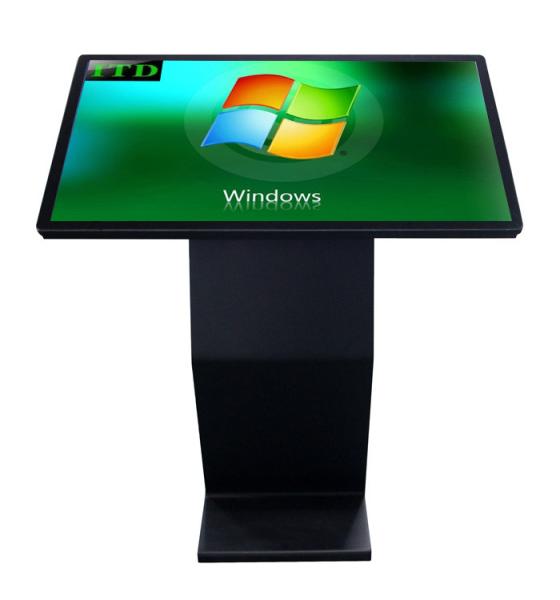

    Product image:


    pure flat industrial monitor


    43 inch pcap touch monitor
    43 inch touch screen monitor
    touch monitor
