Automatic Double Layer Corrugated Sheet Rolling Machine For Building

    Buy cheap Automatic Double Layer Corrugated Sheet Rolling Machine For Building from wholesalers

    Buy cheap Automatic Double Layer Corrugated Sheet Rolling Machine For Building from wholesalers
    • Buy cheap Automatic Double Layer Corrugated Sheet Rolling Machine For Building from wholesalers

    Automatic Double Layer Corrugated Sheet Rolling Machine For Building

    Ask Lasest Price
    Model Number : floor decking Machine
    Certification : CE
    Price : on discuss
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    Automatic Double Layer Corrugated Sheet Rolling Machine For Building

    Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated For Building


    Machine components

    No.NameQty
    1.De-coiler1 Set
    2.Roll Forming Machine1 Set
    3.Hydraulic Cutting Device1 Set
    4.PLC Control Box1 Set
    5.Hydraulic Pump1 Set
    6.Output table1 Set

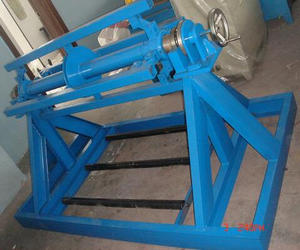

    Decoiler

    TypeManual type(standard)Hydraulic type(option)
    PhotoColor PPGI Trapezodial Steel Roof Roll Forming Machine Building , Roofing Roll FormersColor PPGI Trapezodial Steel Roof Roll Forming Machine Building , Roofing Roll Formers
    Width1250mm1500mm
    CapacityMax 5tonsFrom 5-15 tons
    Inner diameterφ508-610mmφ508-610mm
    Outer diameterφ1500mmφ1800mm

    roll forming

    ItemParameter detail
    Processing MaterialGI and PPGI
    Material thickness0.25-0.8mm
    Machine frame360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
    Machine siding panel
    plate typePillar type(option)
    Color PPGI Trapezodial Steel Roof Roll Forming Machine Building , Roofing Roll FormersColor PPGI Trapezodial Steel Roof Roll Forming Machine Building , Roofing Roll Formers
    Plate thickness:20mmPillar thickness:30mm
    Painting:normal paintingpainting:Chroming

    Forming stations13-22 stations(according to the profiles)
    Machine rollershigh grade No.45 forged steel,plated hard chroming with thickness 0.05mm
    Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
    Machine Shaftφ70-80mm high garde No.45 steel after treatment,
    Machine spacersCNC lathing in high-precision
    Machine bearingsChina Haerbin bearing or SKF international bearing(option)
    Driving system1 inch chain or gear box(option)
    Machine power3kw-11kw(according to the profiles)
    Machine working speed8-12m/min or 10-30m/min(option)
    Machine adjust typeAfter machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

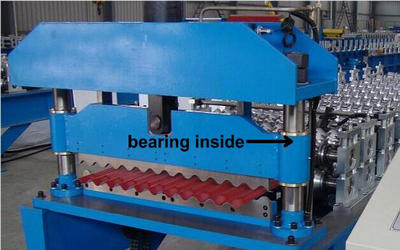

    Cutting

    Typebearing sliding type
    Color PPGI Trapezodial Steel Roof Roll Forming Machine Building , Roofing Roll Formers
    Blade materialCr12mov quenching and grinding
    Frame processingthe whole bottom frame is grinding for high-precision
    Color PPGI Trapezodial Steel Roof Roll Forming Machine Building , Roofing Roll Formers
    Blade processingwire-electrode cutting, but the upper balde can not be straight. this is technology
    WorkingHydraulic type

    Stacker

    TypeManual
    Color PPGI Trapezodial Steel Roof Roll Forming Machine Building , Roofing Roll Formers

    Auto(option)
    Color PPGI Trapezodial Steel Roof Roll Forming Machine Building , Roofing Roll Formers
    Length1.5m-2m6m or 12m

    PLC

    Main itemParameter detail
    PLCDelta(standard) or according to your request
    Color PPGI Trapezodial Steel Roof Roll Forming Machine Building , Roofing Roll FormersColor PPGI Trapezodial Steel Roof Roll Forming Machine Building , Roofing Roll Formers
    InverterChina brand(standard) or according to your request
    Touch screenMcgs(standard) or according to your request
    EncoderChina brand(standard) or according to your request
    Voltage/HZ/Phase380v/50-60hz/3phase
