    Round Downspout Roll Forming Machine With 10 - 12 Mpa Hydraulic Pressure

    Round Shape Rainspout Down Spout Roll Forming Machine 0.5mm Material PPGI and GI Steel

    Description

    Our downspout roll forming machine mainly consists of uncoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system and out table. It can make curve for down pipe to meet the requirement of practical engineering projects.

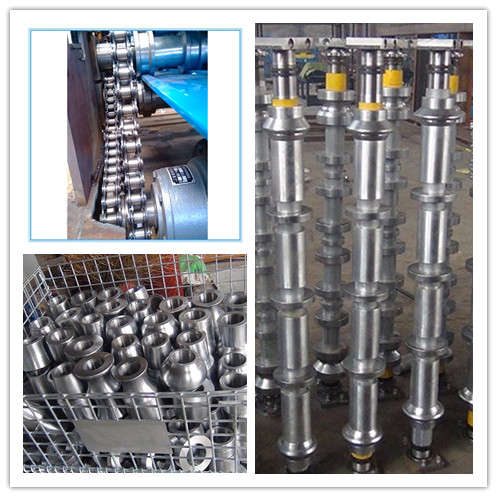

    Machine components


    Passive uncoiler

    Guiding unit

    Roll forming machine

    Cutting unit

    Hydraulic station

    PLC control cabinet

    Supporter table

    Security cover

    Elbow machine


    Technical process


    Passive uncoil— Feeding—Roll forming—Cut to length—Output table—Elbow with pipe


    Technical parameters


    ItemsSpecifications
    Material SpecGalvanized steel sheet, color sheet
    Thickness of Coil Sheet0.3 –0.8mm
    Main Motor Power5.5kw
    Forming Speed10-15m/min
    Hydraulic Station Power3kw
    Quantity of Stands18
    Hydraulic Pressure10~12Mpa
    Controlling SystemPanasonic PLC
    Index Error of Length10m±2mm
    Total Weight7T
    Voltage380V 3 phase 50Hz

    Machine components

    No.NameQty
    1.De-coiler1 Set
    2.Roll Forming Machine1 Set
    3.Hydraulic Cutting Device1 Set
    4.PLC Control Box1 Set
    5.Hydraulic Pump1 Set
    6.Output table1 Set


    Decoiler

    TypeManual type(standard)Hydraulic type(option)
    Width500mm600mm
    CapacityMax 5tonsFrom 5-15 tons
    Inner diameterφ450-550mmφ450-550mm
    Outer diameterφ1500mmφ1800mm


    Company Information


    Cangzhou Kingter Roll Forming Machine Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.
    We specialized in manufacturingColor steel roll forming machinery,C U M Z purlin roll forming machine,Glazed tile roll forming machine,floordeck roll forming machine,shutter door roll forming machine,highway guardrail roll forming machine, downspout machine, welding pipe machine. For metal processing, we have slitting machine, cutting machine, decoiler, punching machine and others.

    FAQ:
    1. How to get a quotation of double layer metal roof tile making machine?
    Give me the profile drawing and thickness ,this is the important.
    Other spicific requirements is welcome,such as the speed,power and voltage you want.

    2. Terms of payment:
    30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.


    3. How long the double layer metal roof tile making machinecould be made?
    Normally speaking, double layer metal roof tile making machinecould be made without 45 working days. If you need double layer metal roof tile making machinein a hurry, we can make it for you less than a month.
