Automatic Insulating Boots Gloves Withstand Tester Dielectric Boots Test Equipment 30kV or 50kV

Insulating Boots 30kV 50Kv High Voltage Test Equipment Gloves Withstand Test Equipment

Product description :

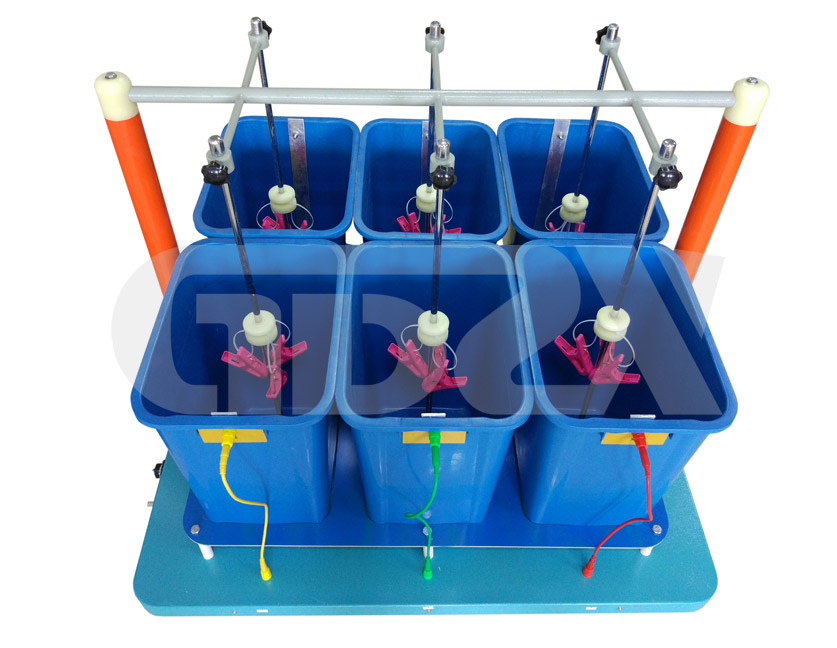

The equipment is applied test leakage current, insulation aging, power frequency of insulating gloves and boots. This Machine can test 3 pairs each time and tell leakage current of each pair to find which one is unqualified. There are trundles in the bottom which make it more convenient for moving.

Features:

Technique Parameter:

Tips : What are the precautions when using the insulation boot glove pressure test device?

In the work of power workers, sometimes they need to do some withstand voltage tests on insulated boots and gloves to determine the withstand voltage level of insulated boots and gloves. Therefore, an insulated boots and gloves withstand voltage test device is needed. The withstand voltage test of double insulated boots and insulated gloves has a high technical content. The following will briefly introduce the precautions when using the insulated boots gloves withstand voltage test device.

• The insulation resistance of the transformer should be tested before use. The input insulation resistance to ground should be greater than 2m_, and the output insulation resistance to ground should be greater than 10m.
• Before use, check whether the contacts of electrical components are loose, whether the contacts are good, and whether the protection system can work normally.
• Before use, clean the insulation support, electrode rod, water tank and other parts with alcohol.
• After the test is completed, it should be made into water, using various parts of dry cotton. If it is used for a long time, it should be stored in a dry and ventilated place.
• There must be no other explosive and corrosive media that seriously affect the insulation such as gas, steam, chemical dust, etc. in the work and storage places.
• Must be operated by professionals and strictly abide by the operating procedures.
• During the test, if the leakage current is greater than the specified value, or the test material is breached, the protective action of the operation box will automatically cut off the power and automatically return to zero. The leakage current exceeds the standard or the corresponding insulation boot (glove) flashes. Value, and there is an alarm, remove the insulation boots (gloves) that exceed the leakage current or disconnect, and then repeat the above operation method. During the test, if the test voltage increases or decreases due to fluctuations in market power, you can press the "Confirm" key to increase the voltage, or press the "Select" key to decrease the voltage.
• In the process of using the insulation boot gloves withstand voltage test device, there are still many issues to be paid attention to. Electricity workers need to make judgments based on actual conditions and use the equipment strictly in accordance with the requirements of the instructions.

Some customer feedback :

About GDZX


Wuhan GDZX Power Equipment Co.,Ltd. is located in Wuhan, China, covering an area of 50 acres, with 6,000 m2 of factory space and 12,000 m2 of office buildings. We specialize in power testing equipment, engineering services, equipment commissioning, operations and maintenance testing, calibration, energy-saving and environmental protection equipment, and power sales. Our integrated solutions provide complete high-voltage testing and electrical inspection services to various power users.

Guodian Zhongxing integrates R&D, production, sales and service, and provides complete solutions for high voltage testing and electrical testing services for all types of power users. It is a well-known brand of electrical testing equipment in China.

The six major categories of products independently developed and produced by the company are mainly used in the handover test, preventive test, condition maintenance and intelligent substation detection of various voltage levels of power equipment in all links of the power system from power generation, transmission and distribution to distribution, factory inspection and annual inspection of primary equipment. Specifically divided into: high voltage/ultra-high voltage/ultra-high voltage AC and DC test equipment series, mobile power test intelligent integrated system, transmission and transformation test instrument, power metering/standard series, SF6 gas/oil test series, battery test series. All products have passed the inspection or type test of the "National Power Industry Electrical Equipment Quality Inspection and Testing Center"; and obtained the calibration certificate of the "National High Voltage Metering Station".
