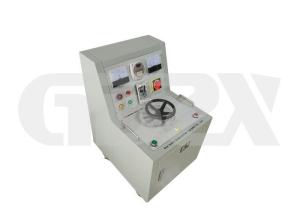

XC/TC Hipot Transformer Control Unit

a. Manual type

Introduction

The control unit is designed to work together with AC/DC High Voltage testing transformer

Features:

• Monitoring high voltage side output & low voltage side current, indicating zero position, operation, Timing
• Over-current protection, zero-starting protection
• With new type timing relay, time range is wider
• Using the latest current relay, more accurate and reliable and safe
• Reasonable structure, small size and light weight

b. Automatic Regulator/Controller for HV test

Features:

1. Voltage, current, timing and results clearly displayed on 5.7 inch screen with backlight

• Sound and light alarm for working status reminding, easy to operate
• Touch panel, safe and reliable,
• Digital adjustment, convenient to use
• Keyboard to input current and voltage ratio
• Over-voltage, over-current protection, accurate and safe
• One key to chose AC or DC mode
• During auto testing, voltage increase and decrease can be paused at any time
• Strong anti-interference ability
• Auto cut off voltage output and alarm when the HV/LV current is over setting value.
• Time relay on-off condition can be set, and time range: 1-9999 seconds
• Customized service, optional functions like remote communications, other interfaces
• Little volume, light weight, compact structure, can stand wear and tear

Parameter:

Measurement range: 0-9999 digital

Accuracy: 1.5%±2digit(F.S)

Setting mode: touch panel, digital key-in, set value permanently save even after power cut-off

The motor returns to zero automatically at abnormal status,

Automatically back to zero at abnormal situation or under voltage

Power supply voltage: AC220V±15%, 50Hz±2Hz

Weight: about 10KG
