    Single Head Rotary Capping Machine Servo Motor Driven Packaging Machine

    Ask Lasest Price
    Brand Name : STRPACK
    Model Number : STR
    Certification : ISO,CE
    Price : Price Negotiable
    Payment Terms : TT/LC
    Supply Ability : 1000 SET
    Delivery Time : 3-50 Working Days
    • Product Details
    • Company Profile

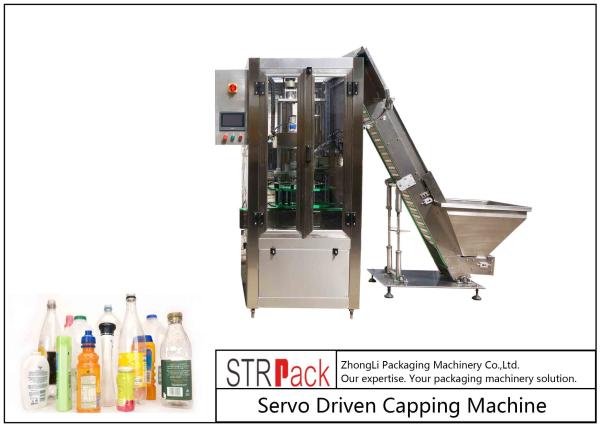

    Single Head Rotary Capping Machine Servo Motor Driven Packaging Machine

    SX-50M Servo Motor Driven Single Head Rotary Capping Machine Packaging Machine Bottle Cap Machine


    The automatic bottle capping machine by STRPack is designed to secure caps onto bottles and constitutes the ideal piece of equipment for high-torque and high-speed capping machine operations. Also available is the Semi-Automatic Bottle Capper, that is economical and portable to use.


    Feature:

    1) Full automatic rotary capping machine is unscrambled lid,conveying lid,conveying bottle and capping,it's using the cover positioning screw cap,the whole machine is a rotary structure.


    2) In the process of the screw cap, there is no damage bottle,high efficiency, high qualified rate, smooth operation and wide use,which can be compared with similar products abroad.


    3) This machine is suitable for all kinds of rules glass or plastic bottle of all kinds of outer cover automatic twist, use the grab cover to grab the various LIDS that are conveyed by the scraping plate, and complete the outer cover in the bottle turning process.The whole machine adopts PLC control, HMI, convenient and easy to operation.


    Technical Date:


    Bottle diameter40-100mm
    Bottle height80-250mm
    Cap diameter15-50mm
    Cap height15-35mm
    Pressure range0.6-0.8Mpa
    Capping head12 heads
    Screwing speed≤10000 bottles/hour
    Weight1600kg
    Host dimension3500*1360*2100mm
    Screwing precision≥99.8%(depend on the material)

    Main electrical components of the machine:

    PLCSiemens/Schneider
    Touch screenSiemens/Weinview
    Frequncy converterSchneider
    RelaySchneider
    ContactorSchneider
    Breaker ProtectorSchneider
    Power switchMeanwell
    Detection photoelectricSick-Stegmann
    Conveyer motorMICRO DETECTORS
    Pneumatic componentsGPG



    FAQ
    1---If have stock machine?
    For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
    2---How long time to make?
    For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
    3---Ship from which port?
    If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.
    4---The payment?
    By TT. 50% in advance as downpayment , 50% balance before shipping.
    -If can visit factory to check machines firstly, then place order?
    Sure! Welcome to visit us !

    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
