High Speed Spindle Bottle Screw Capping Machine Flexible With 60-150 Bottles / Min

    Buy cheap High Speed Spindle Bottle Screw Capping Machine Flexible With 60-150 Bottles / Min from wholesalers

    Buy cheap High Speed Spindle Bottle Screw Capping Machine Flexible With 60-150 Bottles / Min from wholesalers
    • Buy cheap High Speed Spindle Bottle Screw Capping Machine Flexible With 60-150 Bottles / Min from wholesalers
    • Buy cheap High Speed Spindle Bottle Screw Capping Machine Flexible With 60-150 Bottles / Min from wholesalers
    • Buy cheap High Speed Spindle Bottle Screw Capping Machine Flexible With 60-150 Bottles / Min from wholesalers
    • Buy cheap High Speed Spindle Bottle Screw Capping Machine Flexible With 60-150 Bottles / Min from wholesalers

    High Speed Spindle Bottle Screw Capping Machine Flexible With 60-150 Bottles / Min

    Ask Lasest Price
    Brand Name : STRPACK
    Certification : ISO,CE
    Model Number : STR
    Price : Price Negotiable
    Delivery Time : 3-50 Working Days
    Payment Terms : TT/LC
    Supply Ability : 1000 SET
    • Product Details
    • Company Profile

    High Speed Spindle Bottle Screw Capping Machine Flexible With 60-150 Bottles / Min

    High Speed Capper Automatic Spindle Capper Container Capper Machine Bottle Screw Capping Machine 60-150 bottles/min


    We manufacture our Automatic Capper for liquid packaging lines here in our facility. It is flexible, durable and works with most containers and caps including flat caps, sport caps, metal lids and many others. It’s built on a heavy duty, tig welded, stainless steel frame with anodized aluminum plate construction to provide durability in almost any packaging environment. The modular design lets you start with just a cap tightener and easily add capabilities when you need them.

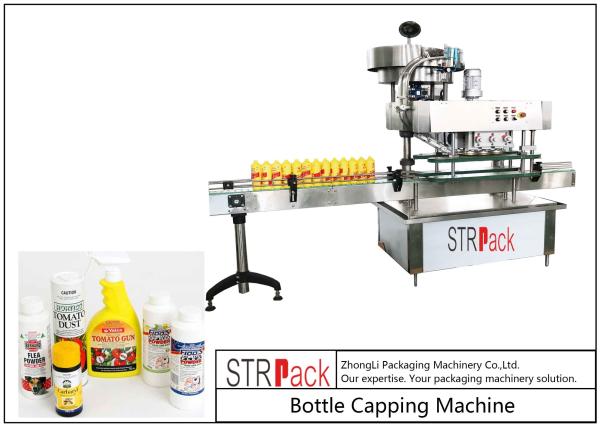

    STRPacks Linear Spindle Capping Machine is a high-speed capper used primarily for plastic and metal screw caps. It can be used for round, rectangular and other irregular-shape bottles and containers. This machine is with silent cap elevator and vibrator which unscramble and feed the individual caps to achieve a flawless capping operation. There are High-End (in the left picture) and Economical type (in the right picture) options.


    Features

    This machine is equipped with a Siemens PLC, Siemens Touch Screen control panel, ABB motor, Banner sensor and FESTO cylinders(high-end type).

    High speed machine capable of an output of 150 bottles/min.

    Variable speed control ensures smooth operation.

    Works with all different shapes of bottles.

    It is reliable, simple to use and easy to install.

    Equipped with a cap chute sensor which detects the presence of caps in the cap chute.

    Stainless steel construction to meet cGMP standard.

    It is with unique design that can accommodate different cap sizes without need to switch the parts.


    Features

    • Power height adjustment
    • Comprehensive universal cap chute and escapement
    • Hand-wheel operated
    • Gripper Belt height and width adjustment
    • Variable speed AC motors 4, 6 or 8
    • Spindle Wheels Spindle Wheel adjustment knobs, with lock nut hand wheel
    • No change parts required for a wide range of containers
    • Sanitary 304 stainless steel drive shafts and adjustment support shafts
    • Timing belt power transmission for Spindle Wheels
    • Bottom screw changeover on Spindle Wheels
    • 1/2” aluminum mounting plates and 1/2” hard coat anodized supports on Cap Feed Chute
    • Designed for easy integration with most conveyor configurations (sold separately )
    • Intrinsically Safe
    • Cap Size: 8mm to 110mm
    • Container Height: 1in – 14in
    • Removable dual gripper belts
    • Trigger spray cap rails
    • F-style Spacer Reversible First Spindle set (on 8 Spindle Capper)
    • Special electrical requirements

    Options

    • Custom applications
    • Additional remote E-stops
    • Polycarbonate Safety Guarding
    • Snap down stabilizer for snap cap or screw cap
    • Also available in a snap capper
    • Designed for easy integration with most conveyor configurations (sold separately )
    • Dedicated cap chutes and escapements.

    Application

    • Will work with most containers and caps including flat caps, sport caps, continuous thread metal lids and many others
    • Laundry Soap Cap
    • Sports Cap
    • Salsa Capping
    • Machine Capping
    • Machine For Liquids
    • Viscous Liquid
    • Capping Machine
    • Capping Machines For Flammable Liquids

    Specification

    ModelSX-200A
    Cap diameter10 - 120 mm
    Cap height10 - 50 mm

    Bottle diameter

    30 - 120 mm
    Bottle height60 - 300 mm
    Speed60-150 bottles/min
    Voltage220v 1phase or 110v 1phase
    Dimension1800 * 630 * 1300 mm
    Weight700 kg
    NoteThe conveyor is optional



    FAQ
    1---If have stock machine?
    For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
    2---How long time to make?
    For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
    3---Ship from which port?
    If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.
    4---The payment?
    By TT. 50% in advance as downpayment , 50% balance before shipping.
    -If can visit factory to check machines firstly, then place order?
    Sure! Welcome to visit us !

    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
