    Digital 7" Open Frame LCD monitor TFT , 4 wire Resistive Touch Screen

    Ask Lasest Price
    Brand Name : AXNEW
    Model Number : AXD-07OPN1P2-V1(VGA/HDMI/AV)
    Price : US$50-US$90/Pcs
    Delivery Time : 7-10 working days
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 10000 pieces/month
    Certification : CE/FCC/ROHS/CCC
    • Product Details
    • Company Profile

    Digital 7" Open Frame LCD monitor TFT , 4 wire Resistive Touch Screen

    Digital 7" TFT 4-wire Resistive Touch Screen Open Frame LCD monitor


    LCD monitor information


    Model Number

    AXD-07OPN1P1-V2 (HDMI)

    7’’ Open frame Monitor

    Type

    7 “ TFT Active Matrix LCD with LED Backlight

    Active Display Area(mm)

    154.08 (H) x 85.92 (V)

    Pixel Pitch(mm)

    0.0642 (H) x 0.1790 (V)

    Resolution

    800 x 480, up to 1024X768

    Contrast Ratio

    500:1 (typ.)

    Display Color

    16.7 M colors

    Brightness

    250(Typ)

    Viewing Angles

    140(H);120(V)

    Response Time

    10ms/15ms

    Environmental Temperature


    Operating Temperature

    -10℃~70℃

    Storage Temperature

    -20℃~80℃

    Signal Input


    PC

    RGB analog(VGA), HDMI, AV

    RGB Frequency

    H:31.5~38kHz, V:50~60Hz

    Power Specification


    Voltage Consumption

    AC 100~240V,Universal,±10% ; AC/DC 12V4A

    6.3W typical, normal operation

    Touch Screen Optional

    Resistive Touch; Capacitive Touch options

    Dimensions

    Holes fixings

    Vesa mounting 75x75/ fixing holes on the right/left

    Mechanical dimensions

    208mmx124mmx31mm

    Drawings

    Please contact us for details


    Features and Advantages
    1.New and A grade perfect panels with stable supply

    2. Professional and industrial hardware and parts to guarantee its working

    normally in rough environment

    3. open frame with front panel frame design on the surface, rugged mounted frame to

    protect the LCD screen

    4. VGA HDMI AV interfaces ;USB touch interface options

    5. 7inch open frame monitor for gaming, kiosks, application control , advertising player ,

    campus and industrial terminals etc

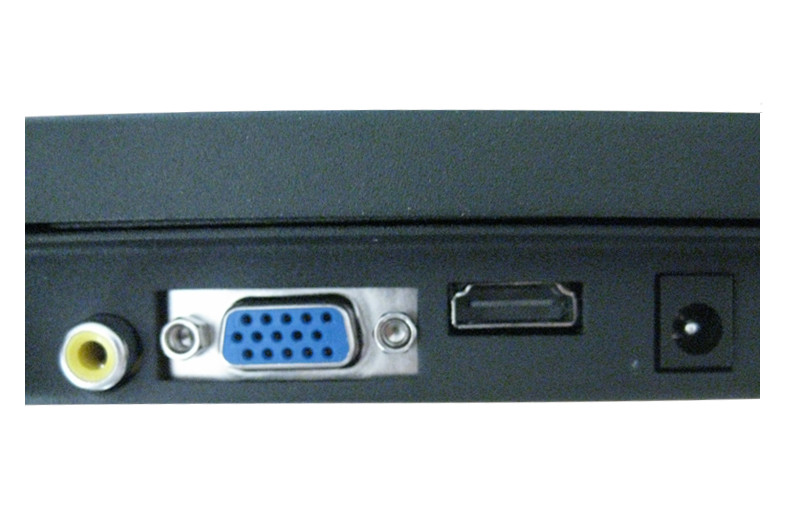

    Remark: Interfaces of HDMI, VGA, AV signal inputs are on the upside, USB for touch connection only.
