    10.4" Open Frame LCD Monitor With High Definition Color TFT Screen

    Ask Lasest Price
    Brand Name : AXNEW
    Model Number : AXD-10OPN1P2-V2(VGA/DVI)
    Price : US$50-150/PCS
    Delivery Time : 10 working days
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 3000 pieces/month
    Certification : CE FCC ROHS
    • Product Details
    • Company Profile

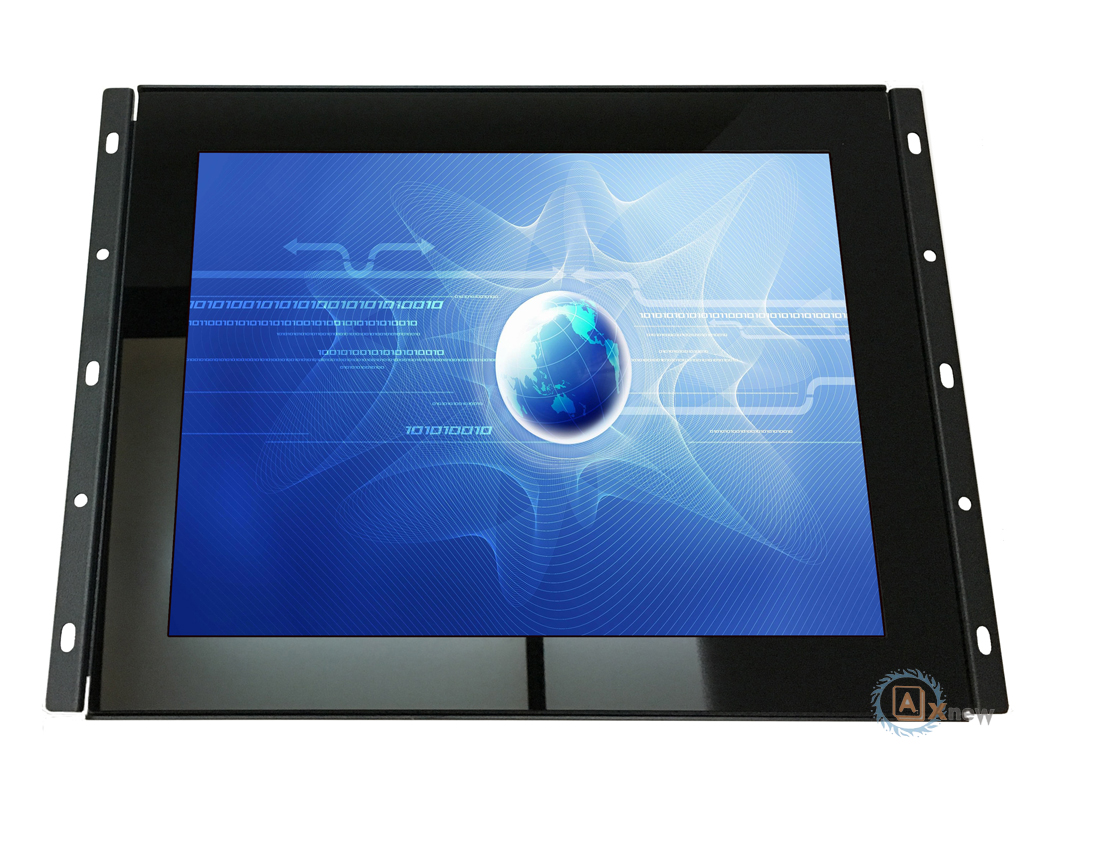

    10.4" Open Frame LCD Monitor With High Definition Color TFT Screen


    Cost Friendly 10.4" Open Frame LCD Monitor With High Definition Color TFT Screen


    Display Specifications


    Display

    10.4" Color TFT Open Frame Monitor

    Model Name

    AXD-10OPN1P2-V2(10.4)

    Active Display Area (mm)

    211.2 (H)x158.4(V)

    Pixel Pitch (mm)

    0.264(H)x0.264(V)

    Resolution (Pixel)

    SVGA (800X600) 16.2M Color

    Brightness (CD/m^2)

    400cd/m^2

    Contrast Ratio

    500:1

    Viewing Angle (CR >=10)

    160/140

    Power consumption

    4.52W typical, normal operation

    Touch Screen

    Resistive, capacitive ;RS232/USB(Optional)

    OSD Control

    On the back side

    I/O Connectors

    1x12v,1XVGA,DVI-D

    Power Input

    DC 12V,4A 48W

    Mechanical Specifications


    Construction

    rugged open frame with edge fixings

    Dimensions

    260 x 215x30 (mm)

    Mounting

    Embedded, edge fixing

    Power source

    AC 100~240V/ 12V DC

    Environment Specifications


    Operating Temperature

    -20~70℃

    Storage Temperature

    -30~80℃

    Rating

    Facilitate installation of the demolition,solid portfolio


    Features and Advantages


    1.New and Industrial A grade perfect panels with stable supply

    2. industrial control board supports the displays working 24 hours

    3. Professional and industrial hardware and parts to guarantee its working normally in rough environment

    4.Open frame design to protect the LCD screen

    5. VGA DVI interfaces ; touch screen optional


    10.4 inch industrial LCD open frame monitor with VGA DVI input ,could installed the resisitive touch or capacitive touch

    used for Automatic equipments, Gas Station ,Advertising , vending embedded system,ATM application etc.


    Order Information of 10 inch open Frame LCD monitor


    • AXD-10OPN1P2-V2(10.4) 800x600 VGA DVI Open Frame LCD monitor (no touch)
    • AXD-10OPN1P2-T1(10.4) 800x600 Open Frame LCD monitor with resistive touch
    • AXD-10OPN1P2-T2(10.4) 800x600 Open Frame LCD monitor with capacitive touch
    • AXD-10OPN1P2-V3(10.4) 1024X768 Open Frame LCD monitor with capacitive touch

    Photos:


    1) No touch

    2) Resistive touch monitor


    3) Capacitive touch monitor
