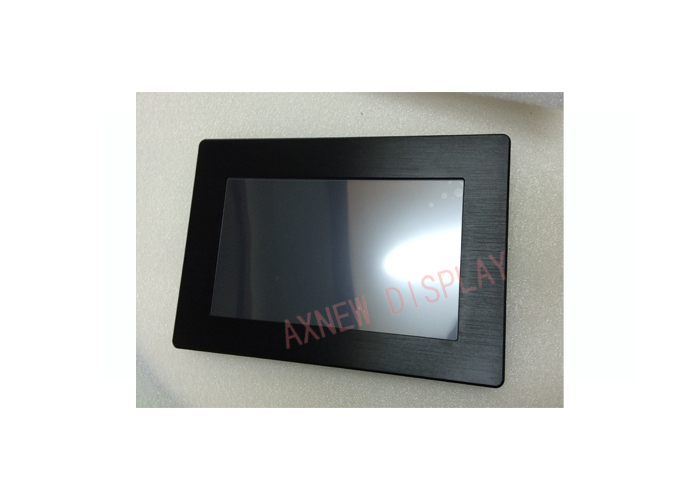

    7" TFT Active Matrix Multi Touch Screen Pc with Capacitive Touch Screen

    Ask Lasest Price
    Brand Name : AXNEW
    Model Number : AXD-07OPIPPC-V3
    Certification : CE/FCC/ROHS
    Price : US$150-250/pcs
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 3200 pieces/month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    7" TFT Active Matrix Multi Touch Screen Pc with Capacitive Touch Screen

    7" TFT Active Matrix Industrial Touch Panel PC with Capacitive Touch Screen


    Specifications datasheet


    Panel PC information
    Model NumberAXD-07OPIPPC-V3
    7.0’’ Touch panel pc
    Case/Bezel ColorBlack/ Aluminum front bezel
    TFT TypeIndustrial LCD with LED backlight
    Aspect ratio4:3
    Touch PanelCapacitive Flat Screen
    Touch response time10ms (typical)
    Optimal (native) Resolution800 x 480
    LCD panel Pixel pitch0.264 x 0.264 mm
    LCD panel Colors16.2 million
    LCD panel Brightness300 cd/m2
    LCD panel Response Time8ms
    Contrast Ratio500:1
    Viewing Angle ( Wide )
    Horizontal (left/right)±70° or 140° total
    Vertical (up/down)70°(up), 70°(down) or 140° total
    CPU

    ARM9 embedded CPU,,

    frequency is 400MHZ

    storage128M DDR2 SDRAM
    Serial Ports4 x COM ports (1x RS-232/422/485 by-pin connector)
    USB Ports2 x USB external ports
    LAN1 x LAN RJ-45 connector/WIFI options
    NandFlash256M Flash
    DC Power In1 x 4-pin connector
    Extended storage32G for SD card
    Optional interfacesCAN/RS485
    Power SpecificationDC 9V-24V
    Working Environment
    TemperatureOperating: 0°C to 50°C ;Storage -10°C to 65°C
    Operating Humidity5 ~ 90% RH @40°C (non-condensing
    Vibration5 ~ 500Hz, 3Grms Random (with CF/SSD)
    Dimensions
    Mounting TypeEmbedded Installation
    Mechanical dimensions134x205 x 28.6 mm
    Weight (Net)2.5kgs/ piece
    DrawingsPlease contact us for details

    Packaging & Delivery


    Packing details

    1x 7.0 Inch Industrial Touch Panel PC;

    Packed in 10 pieces/carton with protection foam

    Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

    Delivery terms

    7- working days for stock products after receiving payments; 15working days for order production
