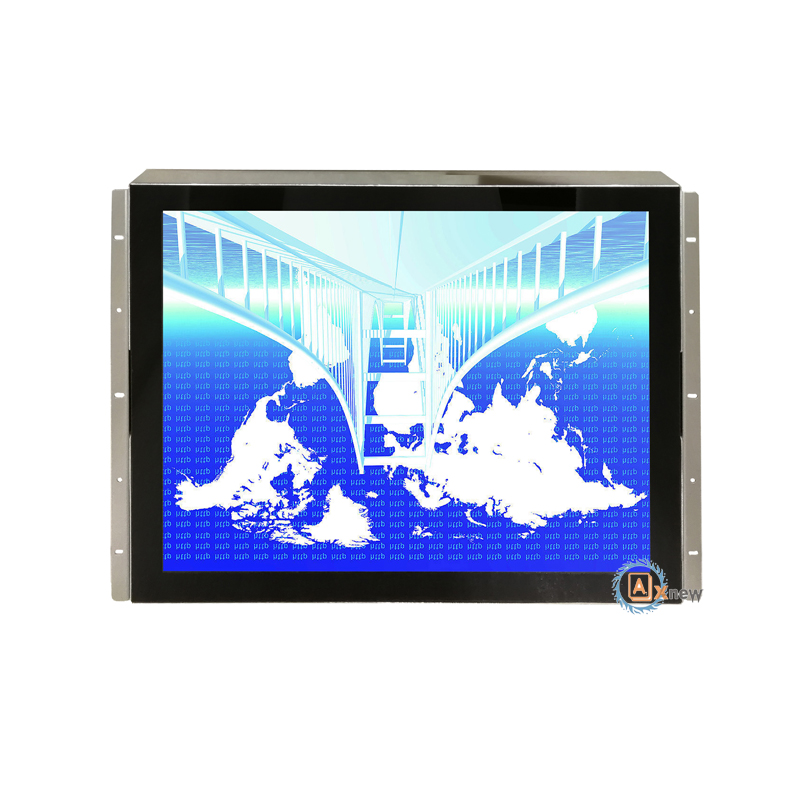

    19 Inch Multi Touch Screen Pc Open Frame Built with Anti-Vandal Projected capacitive

    Ask Lasest Price
    Brand Name : AXNEW
    Model Number : AXD-19OPPC-VI3 C
    Certification : CE/FCC
    Price : US$300-500/pcs
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 1000 pieces/month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    19 Inch Multi Touch Screen Pc Open Frame Built with Anti-Vandal Projected capacitive

    19 Inch Open Frame Built Multi Touch Panel PC with Anti-Vandal Projected capacitive


    Quick Details:


    Model: AXD-19OPPC-VI3

    Screen Size:19’’

    Screen format: 4:3

    Display Resolution(pixel):1280x1024

    Contrast Ratio:1000:1

    Brightness:300cd/m^2

    Storage temperature : -20℃~80℃

    Touch type: 4mm anti-vandal capacitive touch screen

    Power Input: AC100~240 V/DC 12V

    Product status: In production


    Features and Advantages


    1. It's the latest evolution of Mini-ITX form factor industrial Motherboard with Dual GBE Lan.


    2. It is based on Intel Celeron 3217U+HM76 chipset.Provide 2 Mini-PCIE and 1 Sim Slot to support Wifi/GPS/3G/MSATA.

    3. 1 SODIMM slot,Supports up to 8GB, SATA (1 Sata 3.0, 2x Sata 2.0)and MSATA storage modes.

    4. Projected capacitive touch with EETI Chipset


    Model Number

    AXD-19OPPC-VI3 C

    19’’ Open Frame built Multi Touch panel pc

    Case/Bezel Color

    Alumium color

    TFT Type

    Industrial LCD with LED backlight

    Aspect ratio

    4:3

    Touch Panel

    Industrial capacitive touch with 4mm protective glass

    Touch response time

    8ms (typical)

    Optimal (native) Resolution

    1280X1024

    LCD panel Pixel pitch

    0.297 x 0.297 mm

    LCD panel Colors

    16.7 million

    LCD panel Brightness

    300 cd/m2

    LCD panel Response Time

    5ms

    Contrast Ratio

    1000:1

    Viewing Angle ( Wide )


    Horizontal (left/right)

    ±85° or 170° total

    Vertical (up/down)

    80°(up), 80°(down) or 160° total

    CPU

    Intel® Processor I3 (1.8GHz)

    storage

    2G RAM;SSD 16G/32G Options

    Serial Ports

    2 x COM ;RS232/RS485

    USB Ports

    2x USB V2.0; 2xUSB V3.0

    LAN

    1 x LAN RJ-45 connector

    DC Power In

    1 x DC2.5 connector

    Video Port

    1X Line-out

    Other Ports

    1x LAN, 1X VGA ,1xHDMI,1X Audio

    Internal Sockets & Connectors

    reserved for OEM project

    Power Specification

    DC 12V

    Working Environment

    Temperature

    Operating: -10°C to 60°C ;Storage -20°C to 65°C

    Operating Humidity

    5 ~ 90% RH @40°C (non-condensing

    Vibration

    5 ~ 500Hz, 3Grms Random (with CF/SSD)

    Dimensions

    Mounting Type

    Embedded Installation,wall mounting

    Mechanical dimensions

    423.0 x 327 x 53.0 mm

    Weight (Net)

    7.5 kgs/ piece, 1 piece/ carton

    Drawings

    Please contact us for details


    Packaging & Delivery

    Packing details

    1x 19 inch Open frame Multi Touch Panel PC ;

    Packed in 1 piece/carton with protection foam

    Optional accessories:1x Power supply cable, 1x power adapter

    Delivery terms

    7- working days for stock products after receiving payments; 15 working days for order production
